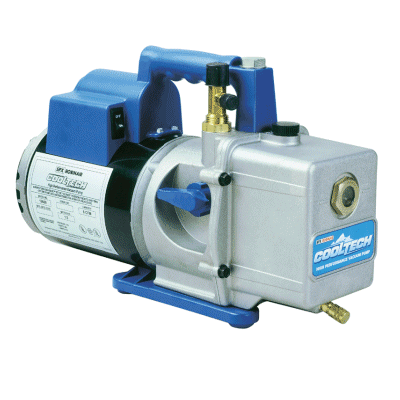

15600 ROBINAIR VACUUM PUMP TWO STAGE DIRECT DRIVE 6 CFM 115

Robinair
Robinair-15600 Out Of Stock
Request more information

Out Of Stock

No reviews have been submitted for this product

Inquiry
Write a review

15600 ROBINAIR VACUUM PUMP, TWO STAGE, DIRECT DRIVE, 6 CFM, 115 60 HZ, UL CERTIFIED

A vacuum pump that's fast and thorough saves you not only time, but also the expense of callbacks and dissatisfied customers.

Robinair pumps perform better than other pumps in the industry, assuring you of complete dehydration before recharging. Robinair pumps are engineered specifically to meet the needs of the kind of A/C work you're doing today, and to give you trouble-free operation. We've put our years of experience and know-how into developing pumps that help you do the job faster and better.

Features:

  • Oil Fill Port - Makes adding oil simple since the part is accessible from the front or either side. The sight glass on the front of the pump shows you when enough oil has been added.
  • Two stage Design - Cleans the system more thoroughly than a single stage pump; the second state starts pumping at a lower pressure so you can pull a deeper ultimate vacuum.
  • Die-Cast Aluminum Housing - Cast aluminum housings make the pumps lightweight and durable.
  • Heavy Duty Motor - High torque design for easy startup and efficient operation.
  • Molded Base - Durable polycarbonate base improves pump balance and minimizes vibration during operation.
  • Iso-Valve- Isolates the pump from the system with just a quarter-turn.
  • Offset Rotary Vanes - Our proven design builds a powerful compression within the pumping chamber to reduce system pressure and vaporize moisture so it can be exhausted along with air.
  • Oil Drain Valve - Positioned at the bottom of the oil reservoir and angled for faster, more complete draining.

  • Specifications:

  • Free Air Displacement: 6 CFM
  • Number of Stages: Two
  • Factory Micron Rating: 20 microns
  • Intake Fitting: 1/4" MFL
  • Oil Capacity: 15 oz. (445 ml)
  • Motor Size: 1/2 HP
  • Voltage: 115V, 60Hz
  • Weight: 27 lbs (12kg)
  • Dimensions: 9

    This must be purchased through your local Robinair Service Center Find Your Local Robinair Service Center Here

    This listing is for information purposes only.
