John Dow AGS-245D Used Oil Storage System - 245-Gallon/Verticle

John Dow Automotive Service Equipment - Used Oil Storage Systems

ITEM PRICED IS AGS-245D ONLY!!! Below is the description of all tank systems available.

Used oil storage systems with double-wall construction, workbench or vertical-style designs.

Quality-built features:

• UL-listed double-wall tank in 180 to 500 gallon capacities.
• UL-listed, 1" air-operated diaphragm pump with 30 gpm capacity.
• Double-wall construction provides 110% secondary containment.
• Automatic air shut-off prevents overfilling***
• Locking securit/environmental cover***
• High-gloss enamel paint finish
• 3/4" x 10" suction hose with quick-connect coupler
• Manual-operated air inlet shut-off valve
• Air filter/regulator
• Air supply connection hose with quick-coupler
• 2" drop tube with camlock fitting and dust cover
• ONE-YEAR LIMITED WARRANTY

***Extra on some competitive models. Standard feature on JohnDow used oil storage systems.

Used Oil Storage Systems
Part No. AGS-285D, AGS-245D, AGS-180D, AGS-500D MODEL AGS-180D

• Capacity (Gallons): 180
• Dimensions (L x W X H): 60" x 28" x 41"
• Weight: 725 lbs.

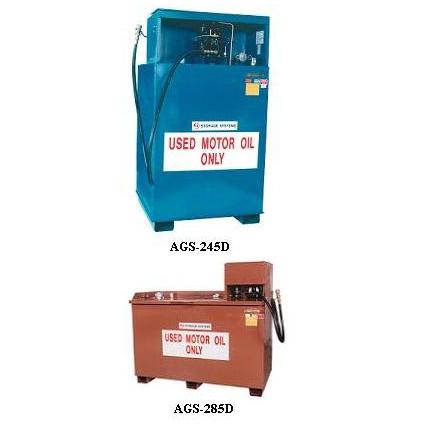

MODEL AGS-245D (image shown)

• Capacity (Gallons): 245
• Dimensions (L X W X H): 40" x 37-1/2" x 69"
• Weight: 1100 lbs.

MODEL AGS-285D (image shown) $5199.00

• Capacity (Gallons): 285
• Dimensions (L x W x H): 67" x 31" x 44"
• Weight: 1100 lbs.

MODEL AGS-500D $6999.00

• Capacity (Gallons): 500
• Dimensions (L x W x H): 88-1/2" x 40" x 44"
• Weight: 1300 lbs.

Owner's Manual for AGS Series Waste Oil Storage Systems
