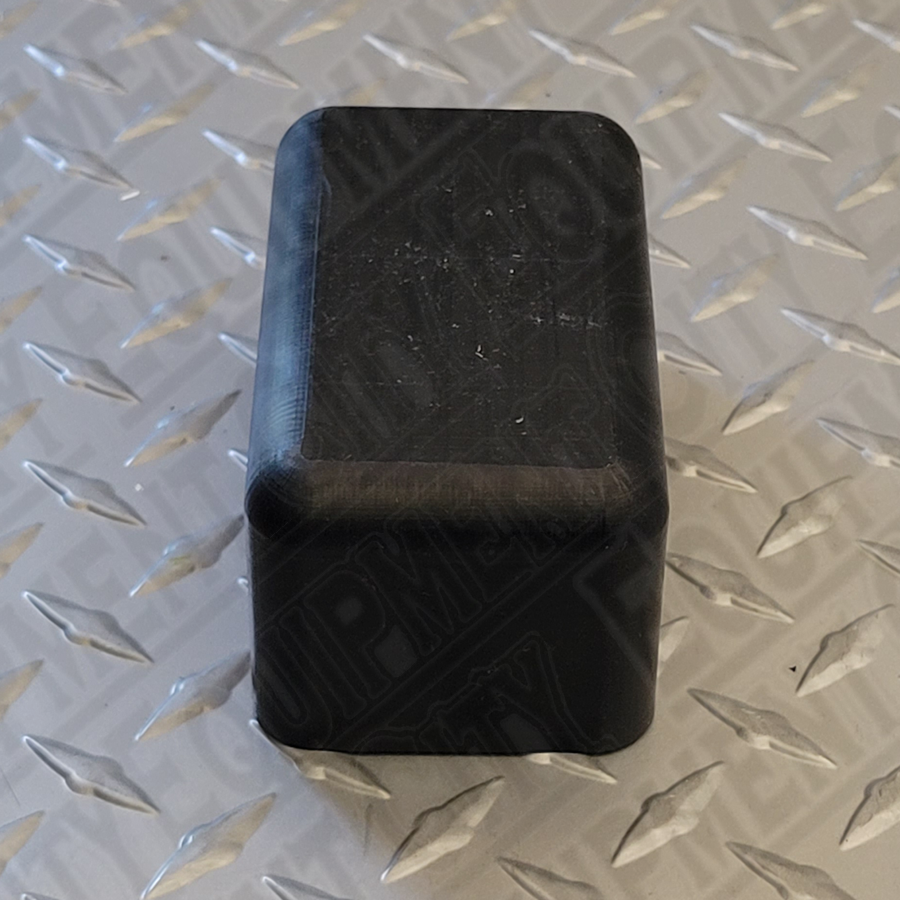

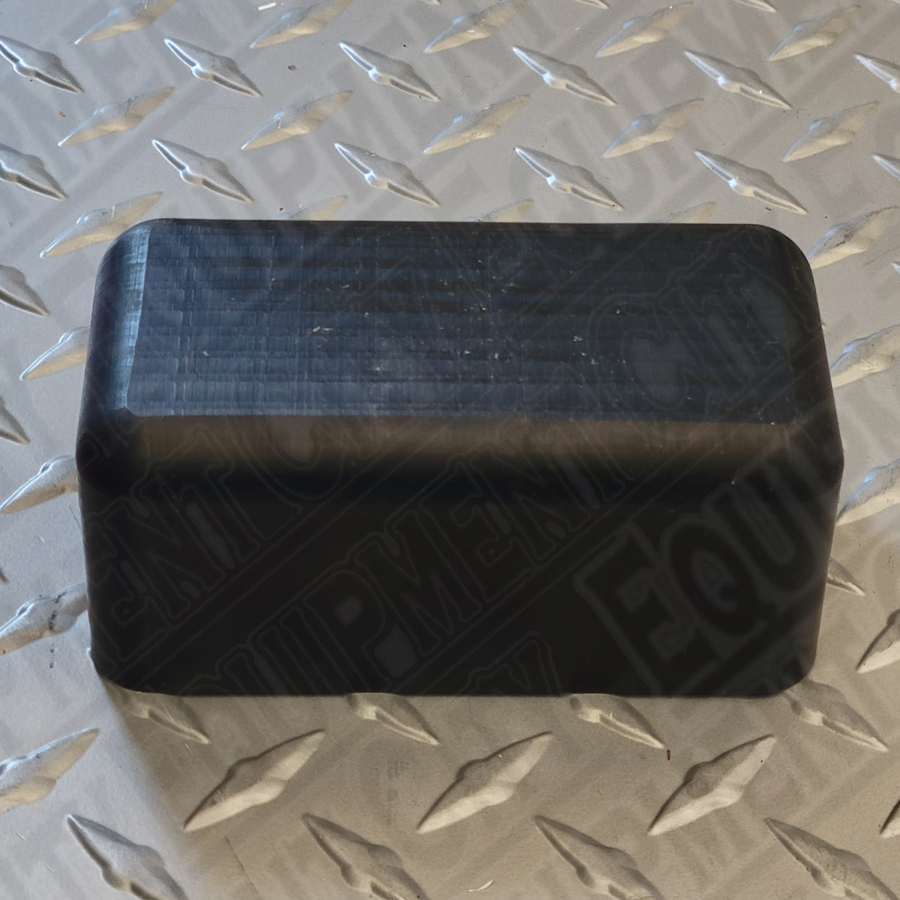

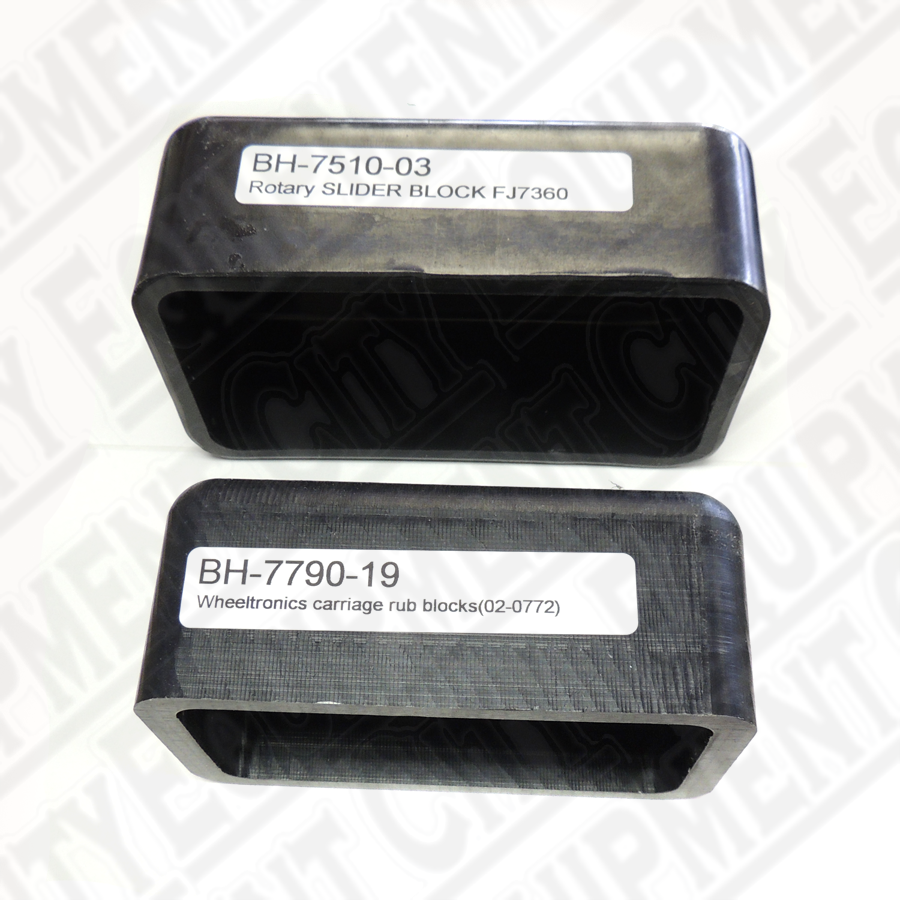

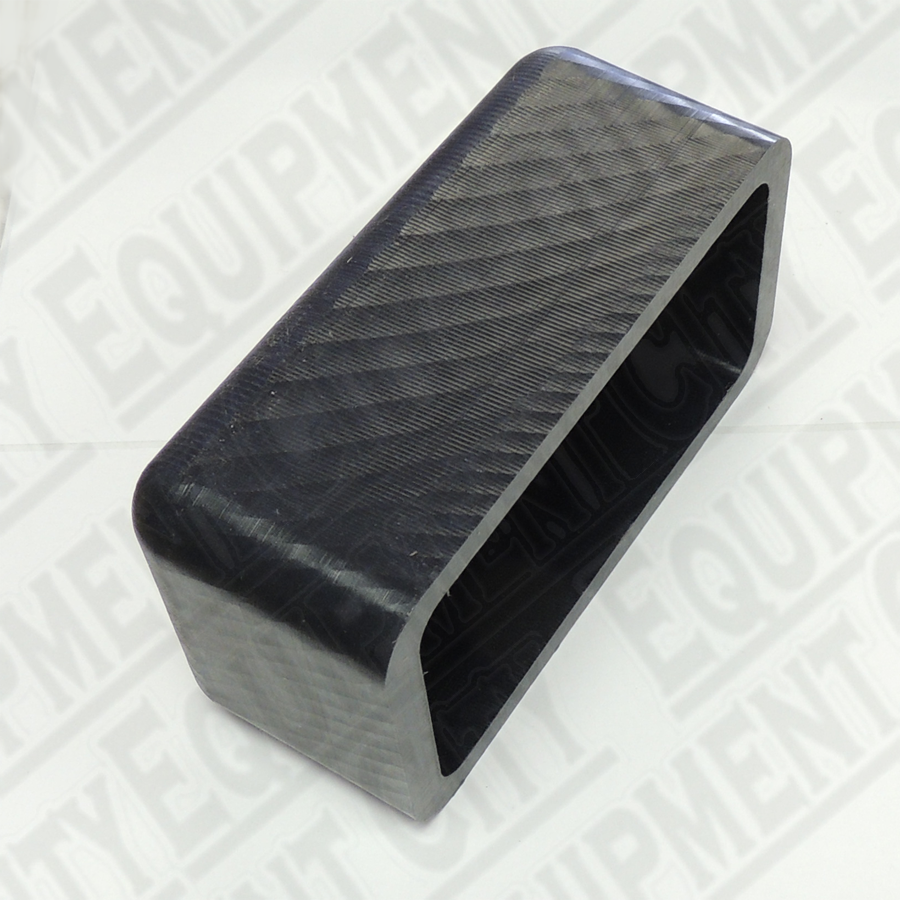

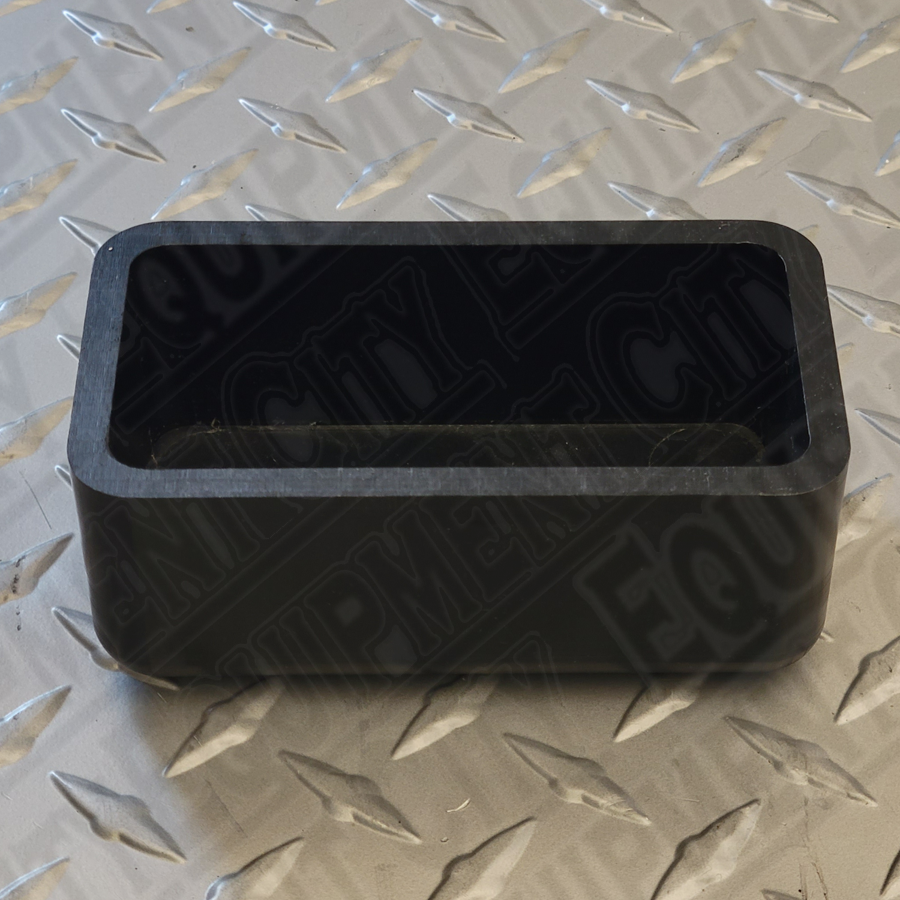

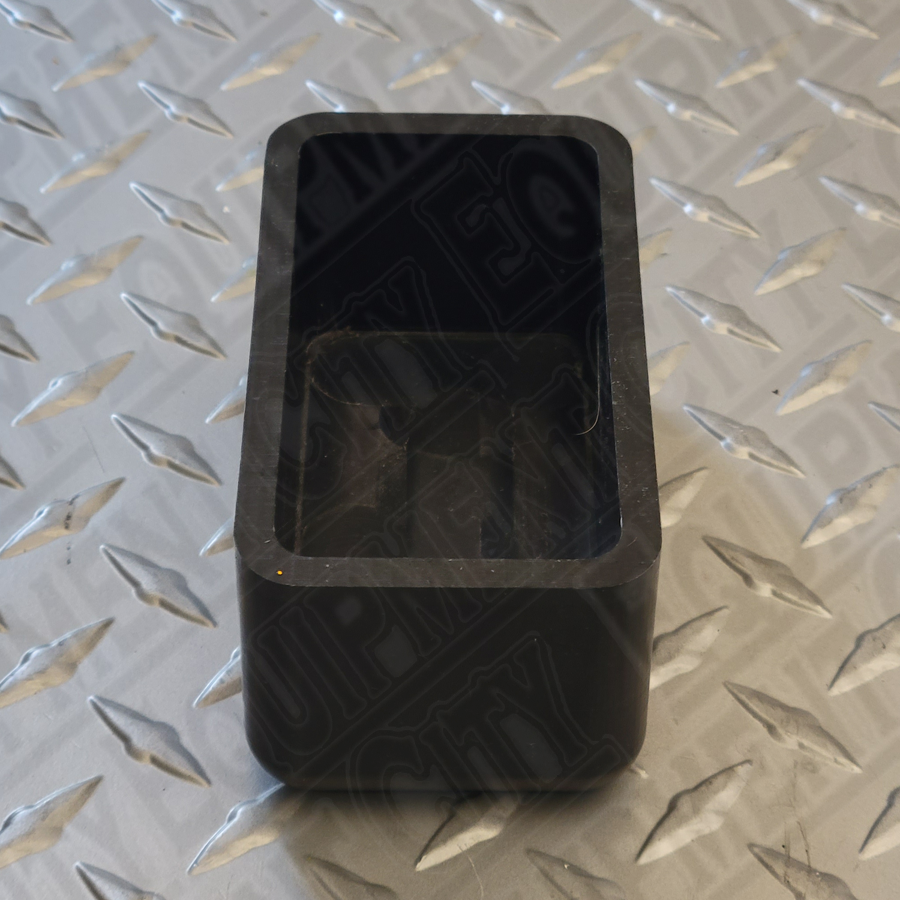

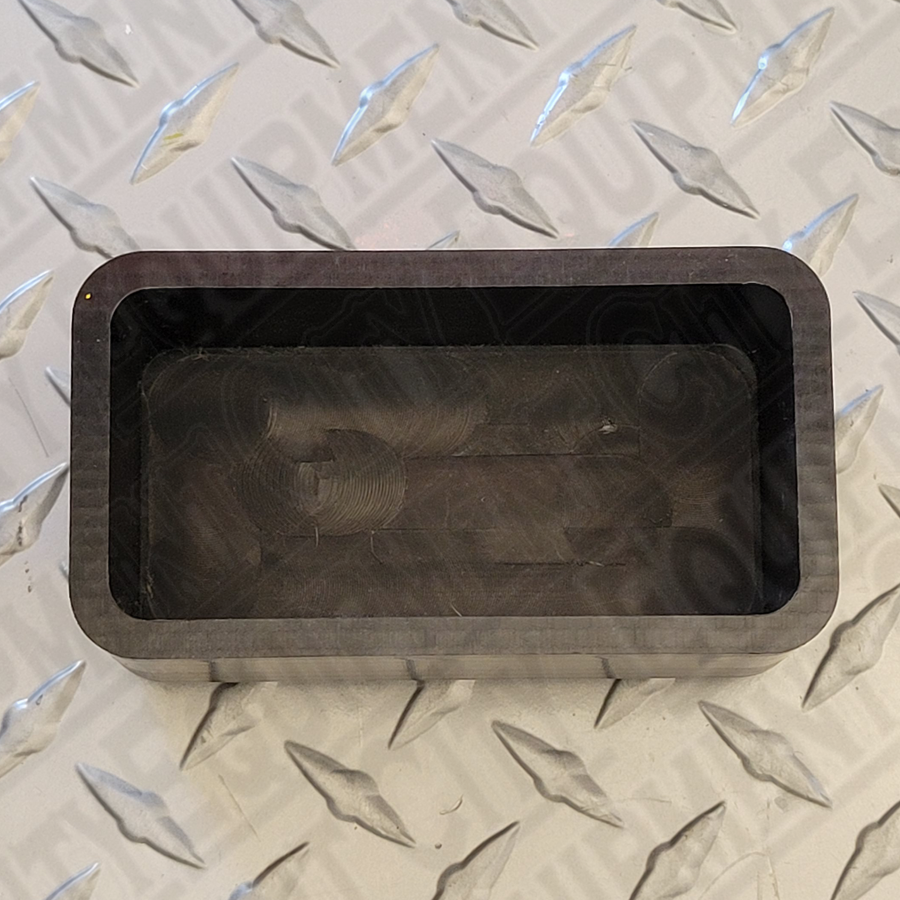

BH-7790-19 Slider Block Like Wheeltronics 2-0772

Slider Block designed to replace the original Wheeltronics 2-0772

Cup Style Rub Blocks 4.7″ long x 2.5″ wide x 2″ deep

These slider or "guide" blocks assist in keeping your carriage weldment square as it rides inside the column. These are considered a wear item and will eventually wear down overtime.

Wheeltronics 2 post lifts fits M# s29sr1 , t10 , t11 / 11144vs , Patriot 1776S , Patriot 1776A, 1800SA, DLSA10V, , 1812S, DLS1012, , EELR349A, 1812S14, DLS1014,  EELR351A, 1812A, DLA1012, , EELR350A, 1812A14, DLA1014, , EELR352A WH-10ASY,  WH-10ASY168,

John Bean Lift – 42010CA, 42010VSA, 42010CS, 42010CS14, 422012SS 42010DSA 42010VSA

Ammco Lift – S290SR1, S290SB1, S290SM1 S290SR3, S290SB3, S290SM3, S290LR1, S290LM1,  S290LB1 S290LR3, S290LM3,  S290LB3

In 2 post Car Hoist there are 8 of these guide bearings in the whole lift ( 4 per side / carriage)

If your serial number on your  2 post car hoist starts with “T9” or “t10” these parts will fit your lift

These are also found in wheeltronic 4 Post lift models – T44214Q4 , 44214QE WH-812407 and many more

Alternate part number – WHS0772, BH-7790-19, JBC20772000

fits wheeltronic and ammco wheeltronics lifts Accu-turn, Hofmann, John Bean, Magnum, Pro Lift, Snap-on
