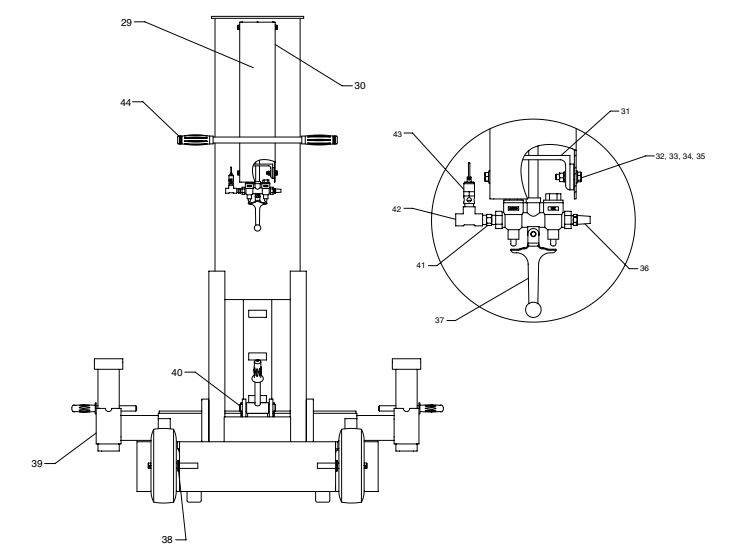

Hardware Kit 564171 for OTC 1590 air jacks.
Kit Includes:
1 x Logo decal (part 1 on the breakdown)
1 x Cap Screw (1/2-13 x 5" lg) (part 3 on the breakdown)
8 x Cap Screw (3/8-16 x 3/4" lg) (part 12 on the breakdown)
8 x Lockwasher (for 3/8" bolt) (part 13 on the breakdown)
1 x Grease Fitting (part 15 on the breakdown)
1 x Cap Screw (1"--8 x5" lg ) (part 16 on the breakdown)
1 x Nut ( 1"-8) (part 17 on the breakdown)
2 x Flat Washer (for 1" bolt) (part 18 on the breakdown)
1 x Cap Screw (1/2-13 x 6" lg) (part 19 on the breakdown)
2 x Nut (1/2-13) (part 20 on the breakdown)
1 x Washer (part 24 on the breakdown)
1 x Cap Screw (1/2-13 x 1-1/4" lg) (part 25 on the breakdown)
1 x Nipple fitting (part 26 on the breakdown)
1 x 90 degree fitting (part 27 on the breakdown)
2 x Handle Grip (part 44 on the breakdown)
