Rotary RJ4500-RJ6000 Parts Diagram

Diagrams are for reference only.
  • These diagrams are one version of many possible variations. We cannot be held responsible for errors.
  • It is important that you call to us, to verify the parts you need are indeed what is listed.
  • Parts returned due to diagram variations will be subject to the normal restocking fees listed in our Terms and Conditions.
  •
ITEM DESCRIPTION PART #
1 Top Channel Weldment SB300014
2 Bottom Channel Weldment SB300005
3 Right Hand Sliding Adapter SB300012
4 Left Hand Sliding Adapter SB300010
5 Link Weld SB300008
6 Hydraulic Cylinder FC5642
7 Upper Cylinder Pin FC5639
8 Lower Cylinder Pin FC5640
9 Narrow Slider FC5185-68
10 Wide Slider FC5185-67
11 1-1/2" Tall Rubber Auxiliary Adapter FJ2427
12 3" Tall Rubber Auxilary Adapter FJ2428
13 3/8"-16NC x 3/4" Lg. HHCS Grade 2 Plated 40130
14 Pinetree Retainer FC5185-69
15 Pump See Below..
  RJ4500 & RJ4500-R & RJ4501 FC5948 or FC5964*
  RJ6000 & RJ6000-R FC5889 or FC5965*
16 Hose FC5657-4
17 Roller FC5895-8
18 M8 1.25mm x 14mm Lg. HHCS 41535
19 Bellows FC5144-1
20 Elbow Adapter FC5185-45
21 Narrow Tall Slider SB700006
22 Telescoping End Weld FC5895-1
23 Spring FC5895-6
24 Pin FC5630
25 1/4" x 1"Lg. Roll Pin 14420
26 Long Dog Weldment FC5634
27 Short Dog Weldment SB300009
28 Axle Support FC5895-7
29 Axle FC5895-10
30 Sleeve Bearing FC5185-57
31 1/4"-20NC Set Screw 40042
32 Wheel Pin SB700004
33 3/8"-16NC Hex Nylon Insert Locknut 40657
34 Telescoping End Weld SB300017
35 Wheel Clip SB700002
36 Bumper SB700001
37 Urethane Wheel SB700005
38 Wheel Bearing Cylinder SB700003

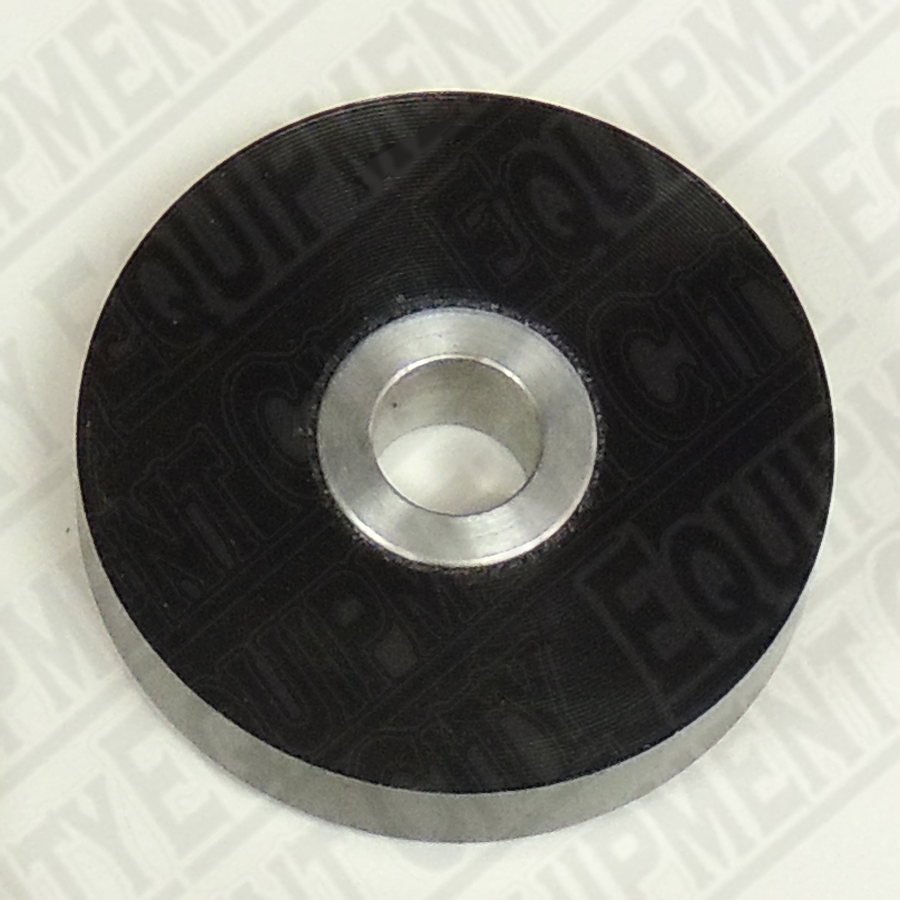

Rotary SB700005 URETHANE WHEEL

Rotary SB700005 URETHANE WHEEL

by Rotary SB700005
$49.00
[ Go ]
Rotary FC5185-57 SLEEVE BEARING-12DXR08

Rotary FC5185-57 SLEEVE BEARING-12DXR08

by Rotary Rotary-FC5185-57
$54.00
[ Go ]

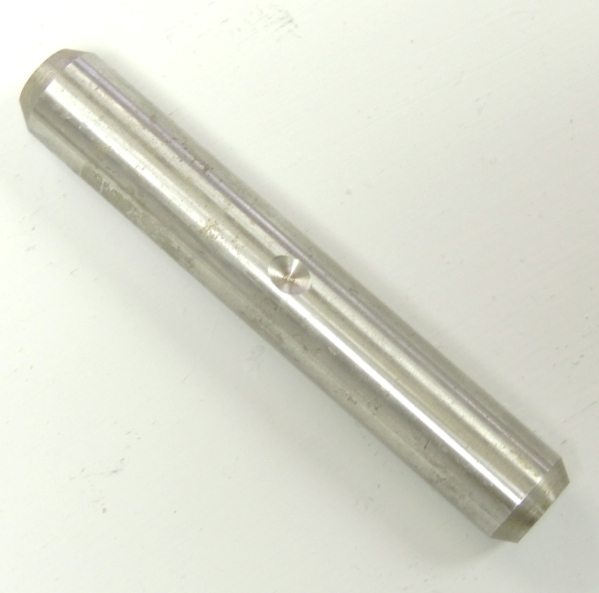

Rotary FC5639 UPPER CYLINDER SHAFT | SHORT

Rotary FC5639 UPPER CYLINDER SHAFT | SHORT

by Rotary Rotary-FC5639
$97.00
[ Go ]

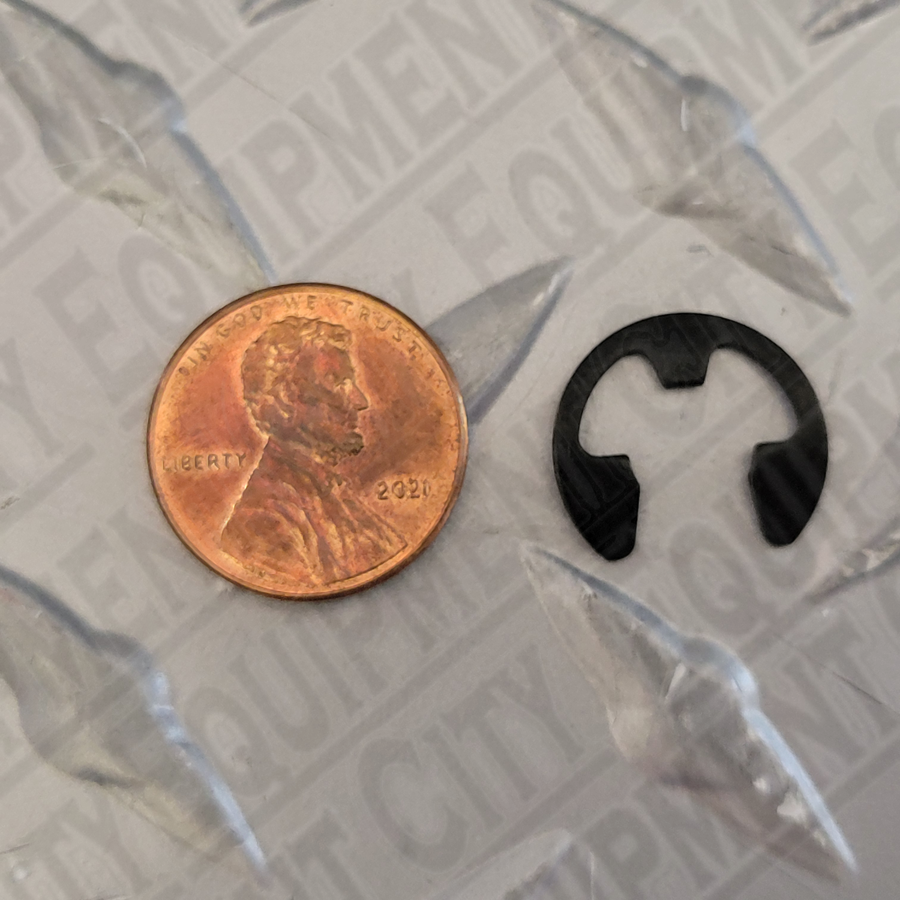

Rotary SB700002 WHEEL CLIP

Rotary SB700002 WHEEL CLIP

by Rotary Rotary-SB700002
$11.00
[ Go ]
Rotary FC5185-45 ELBOW

Rotary FC5185-45 ELBOW

by Rotary Rotary-FC5185-45
$41.00
[ Go ]

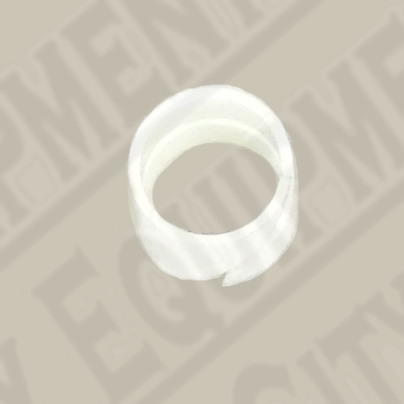

Rotary SB700003 WHEEL BEARING NYLINER 6L8

Rotary SB700003 WHEEL BEARING NYLINER 6L8

by Rotary Rotary-SB700003
$14.00
[ Go ]
Rotary SB300008BK LINK WELDMENT

Rotary SB300008BK LINK WELDMENT

by Rotary Rotary-SB300008
$692.00
[ Go ]
Rotary FC5642 HYDRAULIC CYLINDER

Rotary FC5642 HYDRAULIC CYLINDER

by Rotary Rotary-FC5642
$1,260.00
[ Go ]
Rotary FC5185-68 TOP SLIDER - Each

Rotary FC5185-68 TOP SLIDER - Each

by Rotary Rotary-FC5185-68
$32.00
[ Go ]
Rotary FC5640 LOWER CYLINDER SHAFT | LONG

Rotary FC5640 LOWER CYLINDER SHAFT | LONG

by Rotary Rotary-FC5640
$97.00
[ Go ]

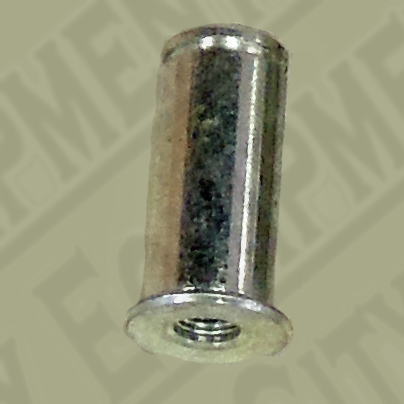

Rotary SB700004 WHEEL PIN

Rotary SB700004 WHEEL PIN

by Rotary Rotary-SB700004
$23.00
[ Go ]
Rotary FC5630 SLIDER SHAFT

Rotary FC5630 SLIDER SHAFT

by Rotary Rotary-FC5630
$13.00
[ Go ]

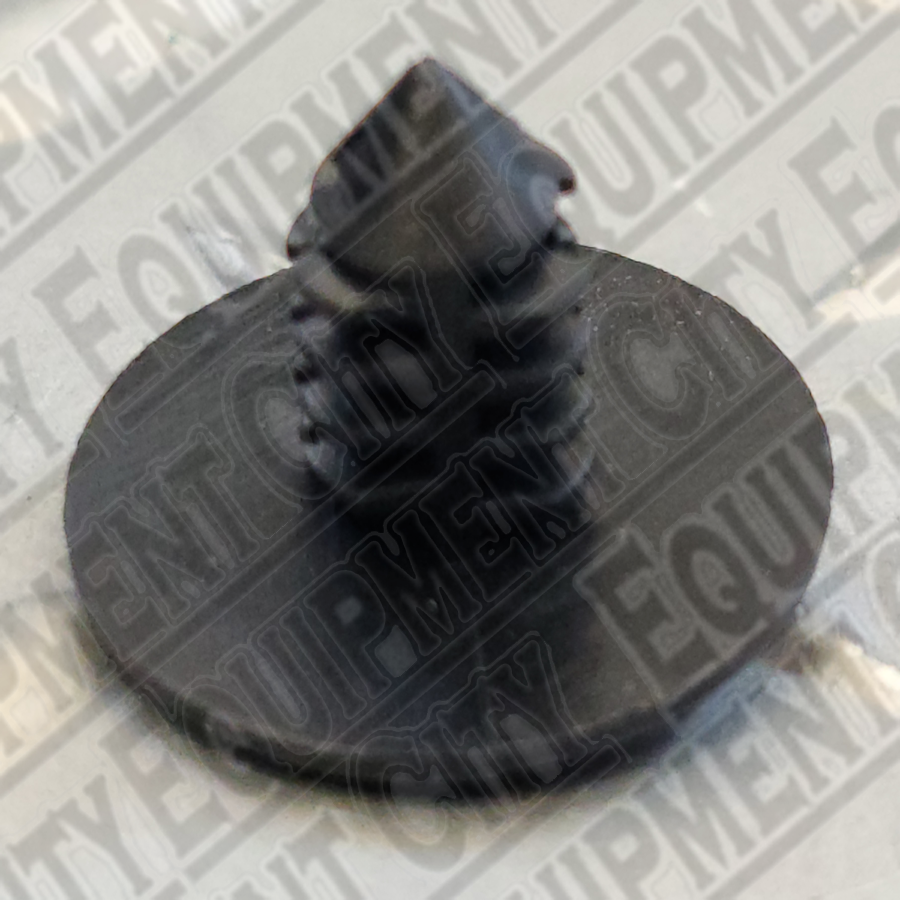

Rotary FC5185-69 RETAINER-PINETREE

Rotary FC5185-69 RETAINER-PINETREE

by Rotary Rotary-FC5185-69
$11.00
[ Go ]
Rotary SB700006 NARROW SLIDER

Rotary SB700006 NARROW SLIDER

by Rotary Rotary-SB700006
$47.00
[ Go ]
Rotary SB300017BK TELESCOPE END SECTION***BARE WITHOUT WHEELS***

Rotary SB300017BK TELESCOPE END SECTION***BARE WITHOUT WHEELS***

by Rotary Rotary-SB300017BK
$219.00
[ Go ]
Rotary FC5185-67 SLIDER | Each

Rotary FC5185-67 SLIDER | Each

by Rotary Rotary-FC5185-67
$32.00
[ Go ]

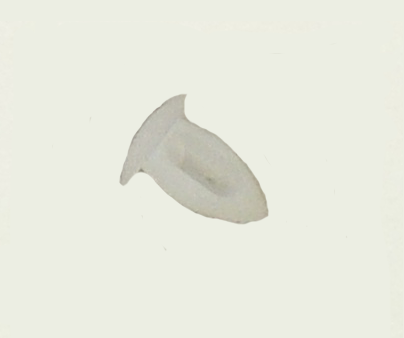

Rotary SB700001 BUMPER

Rotary SB700001 BUMPER

by Rotary Rotary-SB700001
$12.00
[ Go ]
Rotary FC5144BK GUARD ASSEMBLY

Rotary FC5144BK GUARD ASSEMBLY

by Rotary Rotary-FC5144BK
$106.00
[ Go ]
Rotary 8A.05 BREATHER CAP W/DIPSTICK

Rotary 8A.05 BREATHER CAP W/DIPSTICK

by Rotary Rotary-8A.05
$19.00
[ Go ]
Rotary SB300018BK TELESCOPE END SECTION-RETROFIT

Rotary SB300018BK TELESCOPE END SECTION-RETROFIT

by Rotary Rotary-SB300018BK
$219.00
[ Go ]
Rotary SB300012BK L/H SLIDING ADAPTER WELD

Rotary SB300012BK L/H SLIDING ADAPTER WELD

by Rotary Rotary-SB300012BK
$188.53
[ Go ]
Rotary SB300010BK R/H SLIDING ADAPTER

Rotary SB300010BK R/H SLIDING ADAPTER

by Rotary Rotary-SB300010BK
$161.00
[ Go ]
Rotary SB300009 SHORT DOG WELDMENT

Rotary SB300009 SHORT DOG WELDMENT

by Rotary Rotary-SB300009
$62.00
[ Go ]
Rotary FC5634 LONG DOG WELDMENT

Rotary FC5634 LONG DOG WELDMENT

by Rotary Rotary-FC5634
$63.00
[ Go ]
