Rotary SPO9 Parts Diagram





Ref #   Part #   Description Class
1   N75   L.H. Column Weldment
2   N76   R.H. Column Weldment
3   N45   Column Extension
4   N86   Carriage Yoke Weldment
5   FJ7772-1     OutvvvvvArm Pin

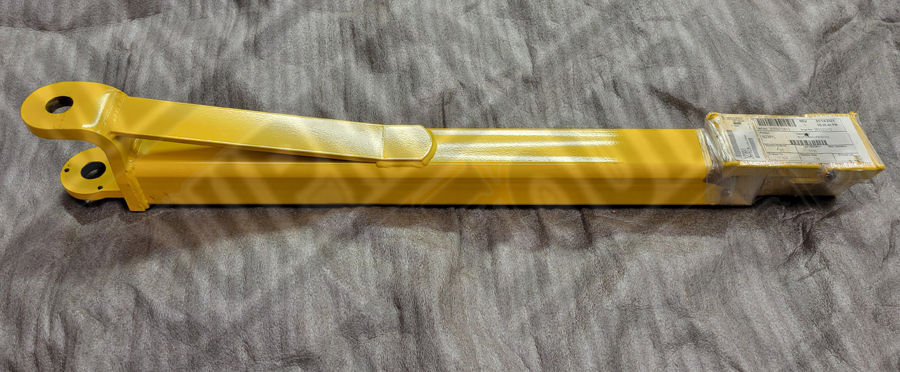

6   FJ7772-1   Outer Arm
7   FJ7664   Hydraulic Cylinder
8       Power Un 1
9   FJ837   Power Unit Hose A
10   440224   5/16”-18NC x 3/4” Bolt Ext tooth LW&Nut Innor Arm A
11   FJ7416-2   5/16” External Tooth Lockwasher A
12   40155   3/8”-16NC  X 5/8 Ld HHCS Gr.8 E
13   40843   3/8 Inernal Tooth Lockwasher A
14   FJ7416-2   Order with Complete Ass'y Item #11 A
15   FJ671-1   High Step Adapter
16   FJ7671-2   Low Step adapter C
17   FJ671-3   Adapter Pin A
18   FJ671-6   3/32 'Hong Ring for 1/2" Shaft A
19   FJ79-6   Adapter Swivel Pin A
20   2 REQ'D   Bleeder Screw MF (Specify Manufacture) A
21   FJ7391-2   Carriage Bumber A
22   FJ838   Arm Pin A
23   FJ7891-1   Approach Bumper(Door-18" Lg-2 Req'd)) A
24   40703   1/2-13NC Hex Lock Nut A
25   41250   3/16" X2 Long Nut A
26   41411   Truarc 45304-75 Klipring for 3/4" shaft A
27   FJ7116-1   Sheave A
28   FF729   Wheel Spotting Dish Kit C
29   FJ7985-1   Actuator Pin Handel A
30   FJ7656-1   actuator Pin A
31   FJ7646-2   Retaining Ring B
32   FJ7656-2   Arm Restraint Spring A
33   FJ7749   120T Gear block A
34   14427   Spring Pin, 1/4 dia. X 1 1/2' Lg(stainless) A
34B   40627   1/4" -20NC Zinc Hex Nut A
35   40124   3/8-16NCX3/4 FLNGE HHCS GR5 A
36   40200   Gear Belts 3/8 -16NC 1 1/2" HHC Grade 5 A
37   40B18   40B18 11/2 BORE W/ KEY SPROCKT A
38   FJ7750   Restraint Gear A
39   FJ7360   Slider Block A
40   FJ7380   3/4" Concrete Anchor (14 Req'd)
41   41388   1 1/2" O.D. X 760-770" I.D. X .045" Thick Mech Bushing A
42   40109   1/4"-20NC X 2- HHC
43   41423   1/4" --20NC insert Lock Nut
44   41200   1/8 X 1" Lg. Colter Pin
45   FJ7613   Limiter Switch Assembly
46   FJ7613-2   Switch Bar Assembly
47   FJ7767   R.H. Latch Sheave Bracket Assy.
48   N44-1   R.H. Overhead Weldment
49   40134   3/8" 16NC x 3/4" Long HHCS
50   40820   3/8" Flat Washer
51   FJ839   OverHead Hose
52   FJ7450   Equalizer Cable Assembly
53   N43-1   L.H Overhead Weldment
54   FJ7594-1   Locking Latch Cable Assembly
55   40144   3/8 --16NC  1" Flanged HHC
56   40664   3/8 --16NC Flanged Locknut
57   FJ7444-B   Sheave Shaft
58   FJ7613-1   Bracket
59   40104   1/4”-20NC x 3/4” HHCS Grade 5
60   FJ7766   L.H. Latch sheave Bracket Assy.
61   FJ7922   Locking Latch Sheave
62   41410   Truarc Klip #5304-37 for 3/8" shaft
63   FJ7206   Hose Clip (4 Req'd)-OverHead
64??   60033   #10 --24NC X 3/8" Lg. slotted HHTS(Forcolumns)
64   40227   5/16" --18NC x 3/8 Lg. Slotted PHMS(For column)
65   FJ7668   Branch Tee
66   FJ7499   Hose Clip Column, 6 Req'd
67   40122   3/8"-16NC x 3/8"  Lg Flanged HHCS
68   40541   1/4" 20NC Flanged Locknut
69   FJ7871   3/4" Spacer
70   FJ7979   3 Phase Limit Switch Assy. For Units Using Abave 250V
71   P461-2   Single Phase Limit Switch(only)
72   FJ7979-1   Three Phase Limit-Switch Cover(only)
73   FJ7979-2   Limit Switch Bracket Cover
74   40779   1/4' External Tooth Lockwasher
75   40845   3/8” External Tooth Lockwasher
76   FJ7888   Arm Restraint Kit (1 Arm)
