Rotary Model 1150 Leverless Tire Changer

Rotary Model 1150 Leverless Tire Changer Repair Parts Diagram

This diagram can change at any time without notice, and is provided as a convenience for reference only, and should not be used to determine compatability. Please call or email us for confirmation.

1	VSB1157000	Burnished double-fronted cone
2	VSB5815000	V 4 union
3	VS710090730	Traction tool
4	VS203031	TE M8x14 screw
5	VS228501	M8 flanged nut
6	VS272172	TE M8x16 screw
7	VS325054	6-8 reduction
8	VS325191	Pneumatic union
9	VS325193	4/8 adapter union
10	VS710011710	Plate
11	VS710013421	Reverse wheels protection
12	VSG1000A138	Harness kit for short shaft
13	VS710690600	Inflation pedalboard unit + NOI
13	VS710690610	Inflation pedalboard unit
14	VS710710960	(version with tubeless inflation)
15	VS710711650	Valve guard
16	VS710712480	Arm retaining pin
17	VS710712680	Lh guard
18	VS710790011	Rh guard
19	VS710790101	Guide unit with roller
20	VS710790110	Tool arm unit
21	VS710790190	Pneumatic unit + union
22	VS710790210	Pressure gauge support unit
23	VS710790380	Controls unit ASME IT unit (version with tubeless inflation)
24	VS710790242	Arm unit with cylinder
25	VS710790261	Column unit
26	VS710790390	Drive base unit
27	VS710790430	Inverter motor unit
28	VSG1000A118	Roll for matching (optional)
29	VSB0178000	3,6x142 hose clamp
30	VSB0171000	6-4 Fixed reduction union
31	VS599561	Sheath
32	VSB0622000	D.8 right middle union
33	VS520169	NEMA intake
34	VSG800A37	Mounting grease
35	VSG800A38	Brush
36	VSG1000A117	Upper tool

1	VSB1157000	Burnished double-fronted cone
2	VSB5815000	V 4 union
3	VS710090730	Traction tool
4	VS203031	TE M8x14 screw
5	VS228501	M8 flanged nut
6	VS272172	TE M8x16 screw
7	VS325054	6-8 reduction
8	VS325191	Pneumatic union
9	VS325193	4/8 adapter union
10	VS325225	L rapid union
11	VS710013421	Reverse wheels protection
12	VS710090223	Quick coupling
13	VS710690600	Inflation pedalboard unit + NOFI
13	VS710690610	Inflation pedalboard unit (version with tubeless inflation)
14	VS710710960	Valve guard
15	VS710711650	Arm retaining pin
16	VS710712480	Lh guard
17	VS710712490	Rh guard
18	VS710790011	Guide unit with roller
19	VS710790101	Tool arm unit
20	VS710790110	Pneumatic unit + union
21	VS710790190	Pressure gauge support unit
22	VS710790210	Controls unit
23	VS710790220	Magic IT EU unit (version with tubeless inflation)
24	VS710790242	Arm unit with cylinder
25	VS710790261	Column unit
26	VS710790271	Drive base unit
27	VS710790290	Inverter motor unit
28	VS710790300	Bead breaker unit on ground level
29	VSB0171000	6-4 Fixed reduction union
30	VS599561	Sheath
31	VSG1000A118	Roll for matching (optional)
32	VSB0622000	D.8 right middle union

1	VSB1157000	Burnished double-fronted cone
2	VSB5815000	V 4 union
3	VSG1000A67	Bead depressing 28” with entrainer
4	VS203031	TE M8x14 screw
5	VS228501	M8 flanged nut
6	VS272172	TE M8x16 screw
7	VS325054	6-8 reduction
8	VS325191	Pneumatic union
9	VS325193	4/8 adapter union
10	VS325225	L rapid union
11	VS710013421	Reverse wheels protection
12	VS710090223	Quick coupling
13	VS710690610	Inflation pedalboard unit
14	VS710710960	Valve guard
15	VS710712670	Handle
16	VS710712480	Lh guard
17	VS710712490	Rh guard
18	VS710790010	Guide unit with roller
19	VS710790101	Tool arm unit
20	VS710790110	Pneumatic unit + union
21	VS710790190	Pressure gauge support unit
22	VS710790210	Controls unit
23	VS710790220	Magic IT EU unit
24	VS710790241	Arm unit with cylinder
25	VS710790260	Column unit
26	VS710790270	Drive base unit
27	VS710790290	Inverter motor unit
28	VS710790300	Bead breaker unit on ground level
29	VSG1000A125	Locking device for motorbike wheels
30	VS903078	Pressure knob
31	VSB285000	5-way block

1	VS710712590	Frame assembly
2	VSB2528000	Rubber foot
3	VSB3124000	M8 crated nut
4	VS228251	M8 crated nut
5	VSB3055000	Pedal partition
6	VS228501	M8 flanged nut
7	VS710210970	C Front guard
8	VS206019	TCEI M6x16 screw
9	VS710490401	Pedalboard for inverter
10	VS710591341	Selfcentering chuck unit
11	VS710515690	Belt closing
12	VS272172	TE M8x16 screw
13	VS203108	TE M10x55 screw
14	VS228502	M10 flange nut
15	VS203074	TE M12x35 screw
16	VS237025	12x25x2,5 flat washer
17	VS228006	M12 self-locking nut
18	VS790090730	60PSI valve group
19	VS226011	M10 low hexagonal nut
20	VS206360	TCEI M4x45 screw
21	VS228023	M4 self-locking nut
22	VS790090720	60 PSI balancing valve
23	VSB1367300	TBEI M8x16 screw

1	VS710710680	Anti-wear plate
2	VS271012	TBEI M6x10 screw
3	VSB2528000	Rubber foot
4	VSB0013000	Rubber-made feet
5	VS224015	M12 middle hexagonal nut
6	VS710511070	Lh anti-wear plate
7	VS203172	TE M8x16 screw
8	VS228013	M16 self-locking nut
9	VS129311670	Stake
10	VS206128	TCEI M6x30 screw
11	VS710712400	Column assembly
12	VSB4191901	Filter support
13	VS710690480	Air treatment unit
14	VSB0223000	Grease holding ring
15	VS710790180	Panel unit with hexagons
16	VS710790021	Arm support unit
17	VS710790030	Double guide unit
18	VS710790170	D.125 pneumatic cylinder
19	VS236020	17 flat washer
20	VS206234	TCEI M4x40 screw
21	VSGU4940	Cylinder gasket kit D.125
22	VS325118	Swivel coupling

1	VSB0472000	Washer
2	VSB1778000	2x12x54 T spring
3	VS201042	TE M8x40 screw
4	VS201106	TE M10x35 screw
5	VS201236	TE M12x50 screw
6	VS710613270	Arm pin
7	VS203108	TE M10x55 screw
8	VS206021	TCEI M6x20 screw
9	VS206127	TCEI M6x25 screw
10	VS206172	TCEI M8x16 screw
11	VS206503	TCEI M6x35 screw
12	VS210059	STEI M10x30 screw
13	VS222011	M10 high nut
14	VS224007	M6 middle nut
15	VS224015	M12 middle hexagonal nut
16	VS226011	M10 low hexagonal nut
17	VS226015	M12 low hexagonal nut
18	VS228011	M8 self-locking nut
19	VS228013	M16 self-locking nut
20	VS228304	M12 triblock nut
21	VSB1812000	M10 nut
22	VS236020	17 flat washer
23	VS237025	12x25x2,5 flat washer
24	VS237072	D.8,4x22x2,5 washer
25	VS243007	External seeger 15

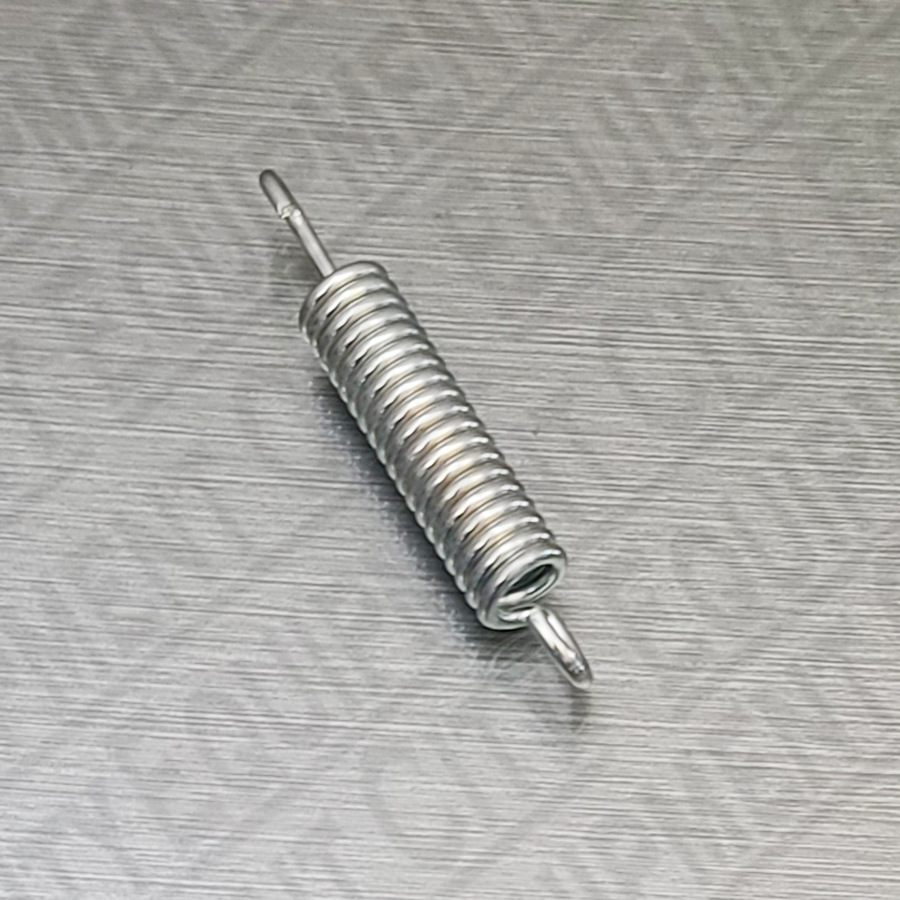

26	VSB3159000	Spring for pedalboard
27	VS710510091	Neck cam
28	VS710590790F	Neck piston
29	VS710590970	Neck cylinder
30	VS710610731	Bead breaker arm support
31	VS710611970	Jack
32	VS710611980	Parachute neck
33	VS710612000	Bead breaker unlock lever
34	VS710612060	Neck
35	VS710612070	Spacer for spring
36	VS710612080	Neck spacer
37	VS710612140	Jack pin
38	VS710612300	Pin for cylinder
39	VS710710340	Arm support assembly
40	VS710710530	Front sliding block
41	VS710711770	Arm support sliding block
42	VS752223950	TE M12X40 screw
43	VS903120	d.8 pressure knob
44	VS918014	CMP spring
45	VS710690520	Neck cylinder
46	VS710611990	Spacer
47	VS201062	TE M10x40 screw

1	VS201062	TE M10x40 screw
2	VS201379	TE M16x130 screw
3	VS210059	STEI M10x30 screw
4	VS222011	M10 high nut
5	VS226015	M12 low hexagonal nut
6	VS228013	M16 self-locking nut
7	VSB1812000	M10 nut
8	VS236020	17 flat washer
9	VSB3159000	Spring for pedalboard
10	VS710510090	Neck cam
11	VS710590970	Neck cylinder
12	VS710710280	Double guide assembly
13	VS710711770	Arm support sliding block
14	VS710711820	Cylinder coupling assembly
15	VS710690520	Neck cylinder

1	VS201301	TE M12x80 screw
2	VS203072	TE M12x30 screw
3	VS210506	STEI M12x70 screw
4	VS224015	M12 middle hexagonal nut
5	VS228503	M12 braking nut
6	VS237069	Flat washer
7	VS710711880	Square assembly

1	VS325148	T middle union
2	VS325118	Swivel coupling
3	VS399267	Lubricator
4	VS399268	Filter
5	VSB2657000	12-1/4 rubber holde
6	VS909026	D. 40 pressure gauge
7	VS710670040	Lubricator cup
8	VS710670030	Filter cup

1	VS203038	TE M8x25 screw
2	VS213003	STEI M5x8 screw
3	VS226011	M10 low hexagonal nut
4	VS228022	M10 low self-locking nut
5	VS229008	M10 blind nut
6	VS231003	6x6x25 wrench
7	VS236007	Fe 10,5x21x2 washer
8	VS237037	8x32x2,5 flat washer
9	VS239023	8,4 toothed washer
10	VS272172	TE M8x16 screw
11	VS710012461	Pulley
12	VS710514840	Threaded bar M10x195
13	VS710413770	Reduction gear cover
14	VS710413780	Cover closing
15	VS710515670	Adapting plate
16	VS710515680	Cover fixing
17	VS710591391	Reduction gear VSF

1	VS206040	TCEI M8x30 screw
2	VS209038	TSPEI M8x25 screw
3	VS212005	STEI M5x12 screw
4	VS212490	STEI M4x4 screw
5	VS226005	M5 low hexagonal nut
6	VS224009	M8 middle hexagonal nut
7	VSB3391000	Ø 10 steel ball
8	VS231086	18x11x55 wrench
9	VS234169	8x20 cylindrical pin
10	VS237413	Thickness washer
11	VS237528	Thickness washer
12	VS243023	External seeger 60
13	VS243088	External seeger
14	VS401007	OR
15	VS404007	Gasket
16	VS413089	Cap
17	VS605052	Radial bearing
18	VS607007	Bearing
19	VSB8574000	Bearing
20	VS710514710	Upper half-body
21	VS140305541	Lower half-body
22	VS140305610	Oil level rod
23	VS140315991	Worm screw
24	VS140316001	Ring nut
25	VS140316010	Spacer
26	VS140316021	Ring nut
27	VS710012941	Pin extension
28	VS710012960	Rubber wheel bearing
29	VS710013680	Connecting rod with entrainer
30	VS710012780	Threaded pin
31	VS243055	External seeger 105
32	VS710010700	Upper flange
33	VS710012770	Spacer for bearing
34	VS234192	8x50 cylindrical pin
35	VS710515000	Crown wheel
36	VS710514921	Reduction gear shaft
37	VS710090481	Guard with OR

1	VS237038	Shear washer
2	VS237074	Fe 14x36x3 washer
3	VS228304	M12 triblock nut
4	VS228305	M14 biblock nut
5	VS710711340	Assembling tool
6	VS710711420	Tool plate
7	VS710711660	Plug for pipe
8	VS209128	TSPEI M6x30 screw
9	VS206012	TCEI M6x10 screw
10	VSB1695000	Ø 30 cap
11	VS209040	TSPEI M8x30 screw
12	VS710513650	Cable stopper
13	VS226011	M10 low hexagonal nut
14	VS256193	TE M10x30 screw
15	VS321060	Gas spring
16	VS299042	D.4 stopper ring
17	VS206408	TCEI M6x22 screw
18	VS228500	M8 flange nut
19	VS224007	M6 middle nut
20	VS710712200	Pin for guide
21	VS213165	STEI M4x6 screw
22	VS710711550	Horizontal arm assembly
23	VS710712180	Connecting rods locking assembly
24	VS710711610	Connecting rods pin assembly
25	VS710711641	Vertical arm assembly
26	VS710711460	Handle control assembly
27	VS710590801	NA valve
28	VS710711510	Verical guide assembly
29	VSB5717000	Cu18 hose clamp

1	VS710210341	Roll
2	VS605014	Radial bearing
3	VS237501	Thickness washer
4	VSB1340000	Washer for roll
5	VS209019	TSPEI M6x16 screw
6	VS710611450	Pin for support
7	VSB8813000	Knob
8	VSB5802000	UNI 8833 split pin
9	VS710712050	Roll support assembly
10	VSB2412000	Roller
11	VS243006	Ring 14
12	VS710211650	Spacer ring

1	VSB1695000	Ø 30 cap
2	VSB1454000	TCEI M8x12 screw
3	VS209019	TSPEI M6x16 screw
4	VS237511	25x35x0,5 shim adjustment
5	VS237525	Thickness washer
6	VS243002	External seeger 8
7	VS243013	External seeger 25
8	VS710010050	Washer for roll
9	VS710090010	Roller
10	VS710590801	NA valve
11	VS710611580	Handle
12	VS710710060	Slewing head assembly
13	VS710710081	Guide assembly with pin
14	VS710710750	D.8 pin
15	VS710711970	Pawl
16	VSB8813000	D.30 ball knob
17	VSB8830000	Spring
18	VS213165	STEI M4x6 screw

1	VS710712381	Rod extension
2	VS222007	M6 high nut
3	VS203128	TE M6x30 screw
4	VS710712371	Bead breaker arm assembly
5	VS710491140	Pneumatic cylinder unit
6	VS710112530	Rear flange
7	VS321027	Piston
8	VS710112540	Front flange
9	VS710414010	D.25 rod
10	VS710413990	Barrel
11	VS325178	Union
12	VS710416530	Cam cylinder tie rod
13	VS401216	OR
14	VS403123	Gasket
15	VS236007	Fe 10,5x21x2 washer
16	VS228022	M10 low self-locking nut
17	VS228302	M8 biblock nut
18	VS710416520	M8x35 colunm
19	VS238044	Elastic washer
20	VS206511	TCEI M8x10 screw
21	VSGU4890	Cylinder gasket kit D.90

1	VS201182	TE M10x70 screw
2	VS206188	TCEI M6x12 screw
3	VS228022	M10 low self-locking nut
4	VS236007	Fe 10,5x21x2 washer
5	VS237517	10x16x0,5 shim adjustment
6	VS710690630	Control box
7	VS710590801	NA valve
8	VS710712230	Control pipe assembly

1	VS228501	M8 flanged nut
2	VSB0173000	Pedal protection plug
3	VS203021	TE M6x20 screw
4	VS226007	M6 low nut
5	VS299161	Spring
6	VSB2989000	3-2 valve D.30 pan
7	VS228017	M8x1,25 self-locking low nut
8	VSB1252400	TE M8x60 screw
9	VSB1367300	TBEI M8x16 screw
10	VS710613150	Pedalboard pin
11	VS243005	Ring 12
12	VS710613180	Pedalboard body
13	VS710613190	Pedal

1	VS228501	M8 flanged nut
2	VSB0173000	Pedal protection plug
3	VS203021	TE M6x20 screw
4	VS226007	M6 low nut
5	VS299161	Spring
6	VS299177	Spring
7	VS228017	M8x1,25 self-locking low nut
8	VSB1252400	TE M8x60 screw
9	VSB1367300	TBEI M8x16 screw
10	VS710613150	Pedalboard pin
11	VS243005	Ring 12
12	VS710613180	Pedalboard body
13	VS710613190	Pedal
14	VS710090340	3/2 valves
15	VSB2989000	3-2 valve D.30 pan

1	VS710412801	Pedal support
2	VS710412900	Welded pedal
3	VS710412820	Potentiometer support
4	VS710412830	Lever for sector
5	VS710412840	Pedal board pin
6	VS710413000	Pedalboard pin
7	VS710411670	Toothed sector
8	VS710565010	Potentiometer cable
9	VS730011050	D.17 pinion gear
10	VS213485	STEI M4x4 screw
11	VS203228	TE M4x8 screw
12	VS243005	Ring 12
13	VS206408	TCEI M6x22 screw
14	VSB1309900	1,2x9,5x64 Zn T spring
15	VSB0472000	FE 12.3x22x2 washer
16	VSB0173000	Pedal protection plug
17	VS918017	TRZ spring
18	VS222007	M6 high nut
19	VSB4137000	M6 biblock nut
20	VS237011	ø6x18 flat washer
21	VS790011970	Safety washer
22	VS201414	TE M6x90 screw
23	VS710613460	Plate
24	VS206228	TCEI M4x8 screw
25	VS206347	TCEI M4x6 screw
26	VS239018	4,3 toothed washer

1	VS710712650	Motor support
2	VS228010	M6 autoblock nut
3	VS201094	TE M6x40 screw
4	VS412081	Rubber washer
5	VS237046	6x24x2 flat washer
6	VS412107	Belt
7	VS710790440	Motor unit + inverter
8	VS900003720	0,75 kW motor
9	VS900003730	Motor removable foot
10	VS220030	TCB screw
11	VS999916011	Motoinverter plate
12	VS206209	TCEI M5x25 screw
13	VS224005	M5 middle nut
14	VS710565020	Inverter signal cable
15	VS730014030	Pulley
16	VS210148	STEI M5x6 screw
17	VS213378	STEI M5x6 screw
18	VS710590964	Inverter
19	VS730065031	Power cable
20	VS710065351	Ground cable
21	VS270228	TCB M4x8 screw

1	VS203356	TE M4x30 screw
2	VS206124	TCEI M5x30 screw
3	VS224009	M8 middle hexagonal nut
4	VS228023	M4 self-locking nut
5	VS228038	M5 low self-locking nut
6	VS228250	M6 crated nut
7	VS272019	TE M6x16 screw
8	VS272038	TE M8x25 screw
9	VSB2850010	5-way block
10	VS325018	8 – 1/8” union
11	VS325151	Closing union
12	VS325154	Cap union
13	VS399286	Flow regulator
14	VS710590810	OR valve
15	VS710611050	Base + valves
16	VS710612410	Valve blade

1	VS730093670	Locking shaft unit
2	VS730022710	D.40 locking shaft
3	VS710013670	Bearing for spring
4	VS710090830	Locking ring nut
5	VS129580660	Ring nut body
6	VS129580670	Ring nut cover
7	VS129580680	Ring nut cam
8	VS129580690	Ring nut spring
9	VS129580701	Lh threaded half-bushing
10	VS129580711	Rh threaded half-bushing
11	VS209160	TSPEI M4x12 screw
12	VS234111	5x32 cylindrical pin
13	VS234174	5x14 cylindrical pin
14	VS237549	Thickness washer
15	VS243702	Ring 50
16	VS401061	OR
17	VS903120	D.8 pressure knob
18	VS903133	Handle
19	VS918007	CMP spring
20	VS710012731	Hook
21	VS201040	TE M8x30 screw
22	VS710013650	Cone for shaft
23	VSB1156000	Cone guard
24	VS710412130	Pad
25	VS209226	TSPEI M4x20 screw
26	VS299205	D.8 expander cup
27	VSB4065900	8x45 cylindrical pin

1	VS710112890	Protection rubber
2	VS710090800	Coupling
3	VS710090790	Entrainer with knob
4	VSB1402200	Wedge
5	VS206019	TCEI M6x16 screw
6	VS206021	TCEI M6x20 screw
7	VS209019	TSPEI M6x16 screw
8	VS710013510	Blade
9	VS710013520	Guard

1	VSB1600000	Inflation pipe L=1500
2	VS203172	TE M8x16 screw
3	VS206188	TCEI M6x12 screw
4	VS224009	M8 middle hexagonal nut
5	VS236005	Flat washer
6	VS325031	Rotary union
7	VS710013660	Hook
8	VS710711050	Pressure gauge support assembly
9	VSB7204000	Tyre valve
10	VSB9055001	Man+discharge support
11	VS909038	D. 80 pressure gauge

1	VS272019	TCEI M6x16 screw
2	VS203035	TE M8x20 screw
3	VS206188	TCEI M6x12 screw
4	VS228010	M6 autoblock nut
5	VS228011	M8 self-locking nut
6	VS710711100	Tank bracket
7	VS770090000	Inflation device assembly
8	VS790090120	CEE reservoir
9	VS790090150	ASME tank
10	VS790090060	Pipe
11	VS325181	V8 union
12	VS317009	8x6 blue rilsan pipe L=1200
13	VS317009	8x6 blue rilsan pipe L=390
14	VS317009	8x6 blue rilsan pipe L=780

1	VS710690280	Bead breaking pedal unit
2	VS710690360	Bead breaking frame unit
3	VS325181	V8 union
4	VSB0381000	Rubber bearing
5	VSB0659000	L.rubber bearing
6	VS270172	TCB M8x16 screw
7	VS140920361	Cylinder fulcrum pin
8	VS237011	ø6x18 flat washer
9	VS228041	M22x1,5 self-locking nut
10	VS203038	TE M8x25 screw
11	VS238004	6,4 elastic washer
12	VS203015	TE M6x14 screw
13	VS950020060	Arm return spring
14	VS269201	M6X10 TE self-drilling screw
15	VS710212030	Bead breaking frame
16	VS710290370	Bead breaking fulcrum-type cylinder
17	VS140320430	Arm fulcrum pin
18	VS710690620	Bead-breaker arm insert
19	VS790012770	Spacer
20	VS236006	8,4 flat washer

1	VS710612040	Pedalboard pin
2	VSB0173000	Pedal protection plug
3	VS299051	D.7 stopper ring
4	VS918016	TRZ spring
5	VS203021	TE M6x20 screw
6	VS226007	M6 low nut
7	VS236005	Flat washer
8	VS710612150	Pedalboard body
9	VS710290700	3-2 valve D.30 pan
10	VS710210780	Single pedal

1	VS710210120	Bead breaker cylinder rod
2	VS140920541	Front flange for rod
3	VS140920550	Rear flange
4	VS408425	Scraper
5	VS630036	Self-lubricating bushing
6	VS140926220	Gasket washer
7	VS222009	M8 high nut
8	VS238006	8,4 elastic washer
9	VS236006	8,4 flat washer
10	VS401196	O-ring 183,74x3,53
11	VS140920062	M8 tie rod
12	VS140920041	Cylinder bead-breaker barrel
13	VS140920380	D.54x18x4 washer
14	VS140920140	Bead-breaker gasket
15	VS228020	18x1,5 selflocking nut
16	VS299156	Seeger for hole
17	VS403123	Gasket
18	VS325107	L rotary union
19	VS140912061	Plate
20	VS220063	TCB M4,2x13 screw
21	VSGU4740	Cylinder gasket kit

1	VS903090	D. 40 ball knob
2	VS253017	Belleville washer
3	VS140925901	Screw for bead-breaker arm
4	VS228006	M12 self-locking nut
5	VS237069	Flat washer
6	VS710613020	Vane
7	VS730011591	Bead breaker arm
8	VS730019810	Fulcrum pin
9	VS243022	External seeger
