BRANICK 7600 STRUT SPRING COMPRESSOR

Branick
BRANICK-7600 Class B - See Terms
Request more information

Class B - See Terms

No reviews have been submitted for this product

Inquiry
Write a review

Known as "the standard in the industry," the 7600 handles the heaviest coil-over-shocks, on light trucks and SUV's, without needing additional adaptors. It also has longer handles for extra torque. The multi-positions upper spring hooks can be arranged for ultimate flexibility to fit "factory" coil spring configurations. It has a longer compression stroke that can even handle the Jeep KX Cherokee Trailhawk and an integrated structural ring guard. Whether long, short, narrow, or angled, the 7600 will get it done. Made in the U.S.A. at Branick's manufacturing facility in Fargo, ND!

Details for: Branick Model 7600:

Diagram Reference Number Part Number Part Description Quantity Used
1 01-0085 Post 2
2 05-0130 LOWER HOOK KIT (Includes: Lower Hook, Hook Pad & Spring Pin) 3
3 05-0129 UPPER HOOK KIT (Includes: Upper Hook, Hook Pad & Spring Pin) 3
4 01-0263 BACK POST 1
5 03-0423 ADJUSTABLE HOOK HOUSING 2
6 03-0427 HOOK HOUSING 1
7 05-0131 UPPER RIGHT/REAR HOOK HOUSING KIT (Includes: Hook Housing, (2) Nylon Bearings, Knob, Spring, Lock Pin & Spring Pin) 2
8 05-0132 1 UPPER LEFT HOOK HOUSING KIT (Includes: Hook Housing, (2) Nylon Bearings, Knob, Spring, Lock Pin & Spring Pin) 1
9 05-0128 COMPRESSION HEAD KIT (Includes: Compression Head, Shoulder Screw, Nut & (3) Spring Pins) 1
10 10-0011 LOWER HOOK PAD 3
11 10-0012 UPPER HOOK PAD 3
12 10-0022 HANDLE GRIP 3
13 05-0136 LOCK PIN KIT (Includes: Knob, Spring & Lock Pin) 3
14 20-0043 THRUST BEARING 1
15 20-0044 NYLINER BEARING 6
16 21-0013 ACME DRIVE SCREW 1
17 05-0126 HUB & BEARING KIT (Includes: Handle Hub, Threaded Hub, Thrust Bearing, Thrust Washer & (3) Set Screws) 1
18 028-064 3/8-16 X 1 CARRIAGE BOLT 4
19 50-0025 5/16 X 1-1/2 SHOULDER SCREW 1
20 50-0065 3/8-16 X 3/4 HEX HEAD SERRATED FLANGE SCREW 1
21 50-0068 1/2-13 X 1-1/4 HEX HEAD SERRATED FLANGE SCREW 6
22 51-0015 ACME ADJUSTMENT NUT 2
23 53-0008 SPRING CLAMP 1
24 50-0189 1/4 – 20 x 1/2 SET SCREW 3
25 055-103 3/8-16 SERRATED HEX FLANGE NUT 1
26 055-154 3/8-16 NYLON HEX LOCK NUT 4
27 055-160 1/4-20 NYLON HEX LOCK NUT 1
28 061-042 3/16 X 3/8 SPRING PIN 6
29 061-091 1/4 X 7/8 SPRING PIN 3
30 05-0127 HANDLE KIT (Includes: Threaded Handle & Grip) 3
31 80-0400 INSTRUCTION DECAL 1
32 80-0398 MODEL 7600 DECAL 1
33 80-0399 7600 WARNING DECAL 1
34 81-0246 MODEL 7600 OPERATING INSTRUCTIONS 1
35 108-015 3/8 SAE FLAT WASHER 4
36 108-137 THRUST WASHER 1


There aren't any reviews for this product.

Related Products

Branick 7400 Strut Compressor Repair Parts

Branick 7400 Strut Compressor Repair Parts

by Branick Model
Request more information
Branick 51-0015 Acme Adjustment Nut

Branick 51-0015 Acme Adjustment Nut

by Branick Branick 51-0015
$46.70
Branick 21-0014 Threaded Hub for Branick Model 7400 | 05-0126

Branick 21-0014 Threaded Hub for Branick Model 7400 | 05-0126

by Branick Branick-21-0014
Request more information
Branick 108-137 Thrust Washer

Branick 108-137 Thrust Washer

by Branick Branick-108-137
$9.70
Branick 06-0030 Compression Head for Model 7400

Branick 06-0030 Compression Head for Model 7400

by Branick Branick-06-0030
Request more information
OTC Tools & Equipment StrutTamer Extreme - OTC-6591

OTC Tools & Equipment StrutTamer Extreme - OTC-6591

by OTC OTC-6591
Request more information
Branick 01-0243 Upper Hook for Model 7400

Branick 01-0243 Upper Hook for Model 7400

by N/A Replaced-with-05-0129
Request more information
Branick 01-0085 Post and Adjustment Screw Shaft

Branick 01-0085 Post and Adjustment Screw Shaft

by Branick Branick-01-0085
$128.40
Branick 05-0129 Upper Hook Kit - Replaces 01-0243

Branick 05-0129 Upper Hook Kit - Replaces 01-0243

by Branick Branick-05-0129
$50.50
Branick 05-0130 Lower Hook Kit

Branick 05-0130 Lower Hook Kit

by Branick Branick-05-0130
$50.50

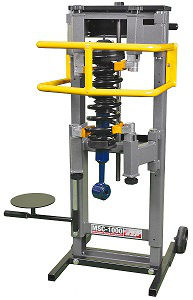

Quality Stainless Products MSC-1000 - Mechanical Strut Compressor

Quality Stainless Products MSC-1000 - Mechanical Strut Compressor

by Quality Stainless MSC-1000
$895.00
Branick 05-0126 HUB & BEARING KIT (7400 & 7600)

Branick 05-0126 HUB & BEARING KIT (7400 & 7600)

by Branick Branick-05-0126
$110.30
Branick 05-0127 Handle Kit

Branick 05-0127 Handle Kit

by Branick Branick-05-0127
$10.50
Branick 05-0128 Compression Head Kit | 06-0030

Branick 05-0128 Compression Head Kit | 06-0030

by Branick Branick-05-0128
$114.50

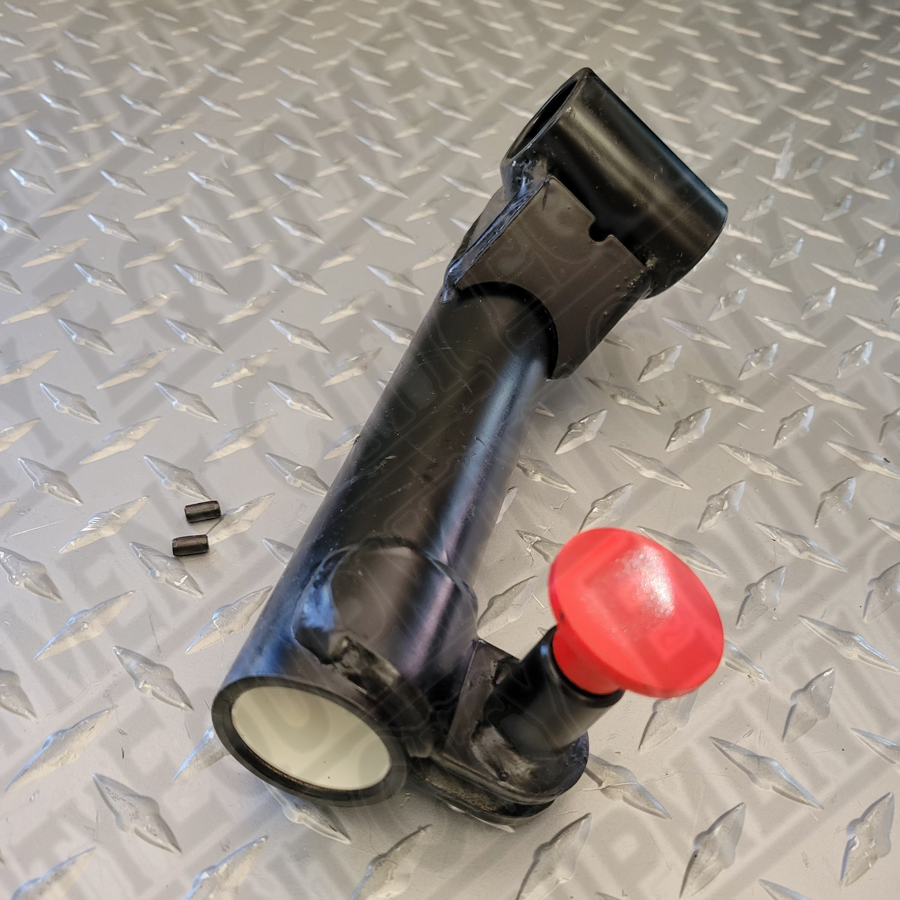

Branick 05-0131 Right Rear Upper Hook Housing Kit for 7600
