MODEL 7400
SERVICE PARTS
ITEM PART NO. QTY DESCRIPTION
01-0085 2 POST
01-0242 3 LOWER HOOK
01-0243 3 UPPER HOOK
028-064 4 CARRIAGE BOLT, 3/8-16 X 1
03-0418 1 BACK POST
03-0420 1 UPPER REAR HOOK HOUSING
03-0423 2 ADJUSTABLE HOOK HOUSING

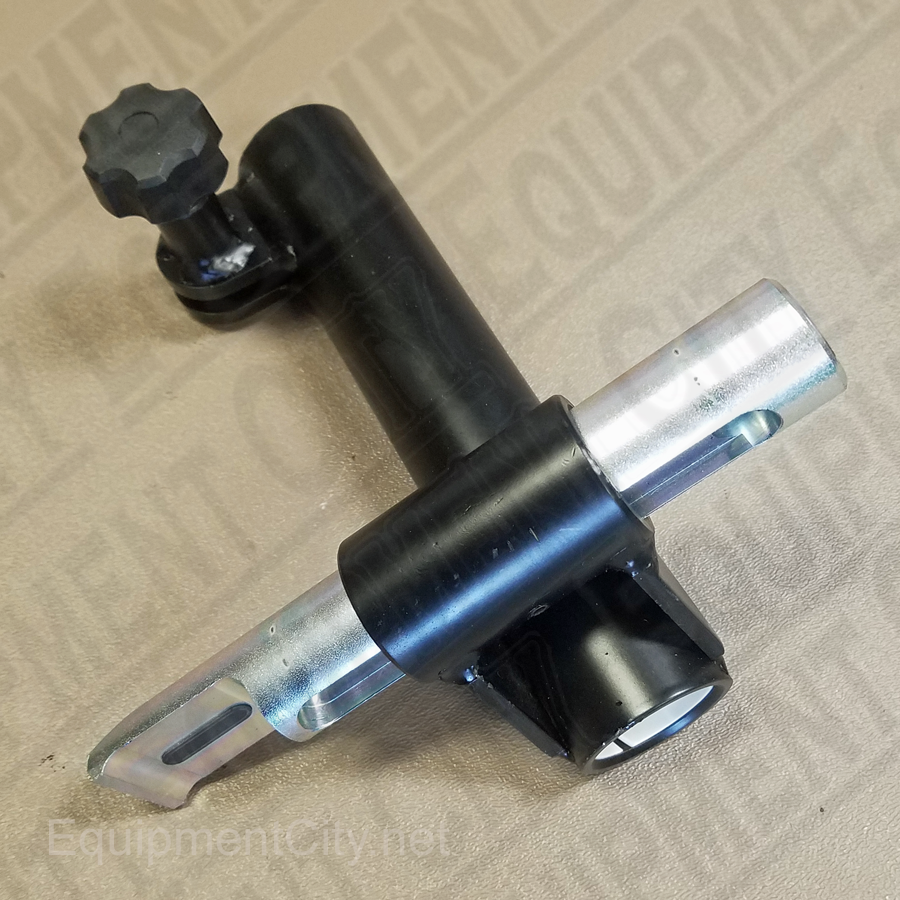

03-0425 1 UPPER RIGHT HOOK HOUSING

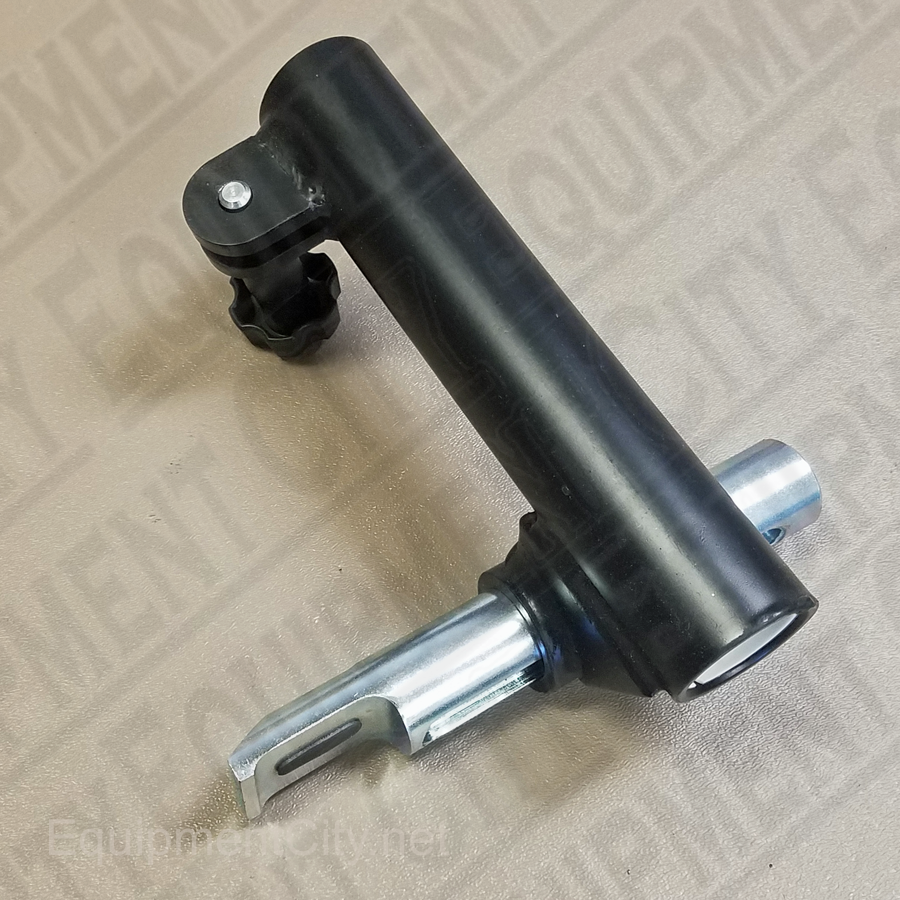

03-0426 1 UPPER LEFT HOOK HOUSING
03-0427 1 HOOK HOUSING
055-103 1 NUT, 3/8-16 SERRATED HEX FLANGE
055-154 4 NUT, 3/8-16 NYLON HEX LOCK
055-160 1 NUT, 1/4-20 NYLON HEX LOCK
06-0029 1 TOP PLATE
06-0030 1 COMPRESSION HEAD
06-0031 1 BOTTOM PLATE
06-0032 1 BACK PANEL
061-042 6 SPRING PIN, 3/16 X 3/8
061-091 3 SPRING PIN, 1/4 X 7/8
10-0011 3 HOOK PAD
10-0012 3 HOOK PAD
10-0022 3 HANDLE GRIP
108-015 4 WASHER, 3/8 SAE FLAT
108-137 1 WASHER, THRUST
11-0075 3 ADJUSTER KNOB
110-065 3 SPRING
20-0043 1 BEARING, THRUST BALL

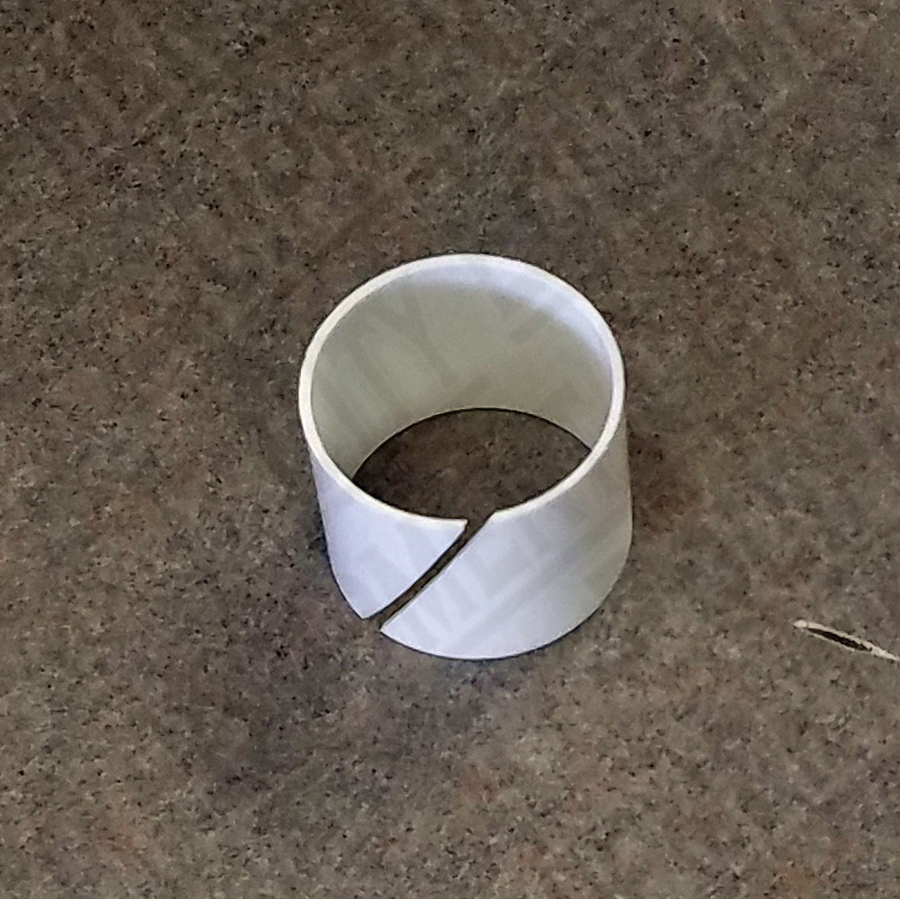

20-0044 6 BEARING, NYLINER
21-0006 1 HANDLE HUB
21-0013 1 ACME DRIVE SCREW
21-0014 1 THREADED HUB
50-0025 1 SCREW, 5/16 X 1 SHOULDER
50-0065 1 SCREW, 3/8-16 x 3/4 SERRATED FLANGE
50-0068 6 SCREW, 1/2-13 X 1-1/4 SERRATED FLANGE

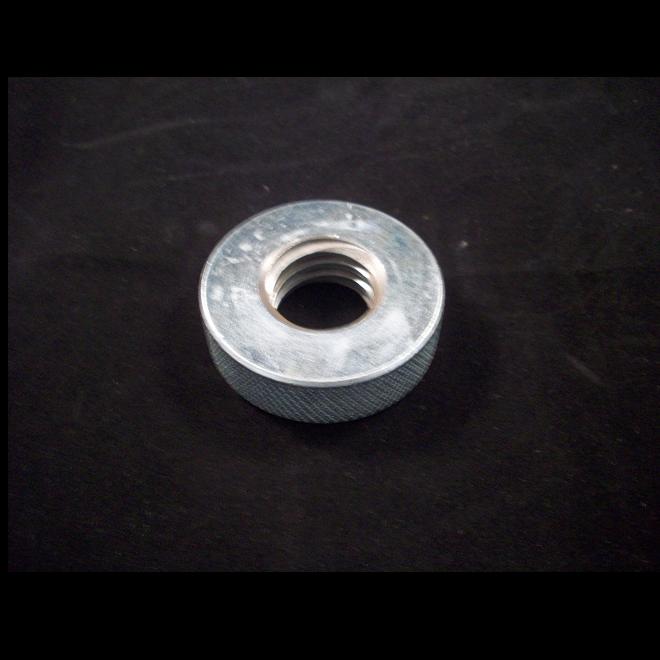

51-0015 2 ACME ADJUSTMENT NUT
53-0008 1 SPRING CLAMP
54-0010 2 SPRING PIN, 3/16 X 9/16
73-1000 3 LOCK PIN
73-1005 3 THREADED HANDLE ROD
80-0222 1 DECAL, INSTRUCTION
80-0224 1 DECAL, MODEL 7400
81-0103 1 INSTRUCTIONS, MODEL 7400 OPERATING
