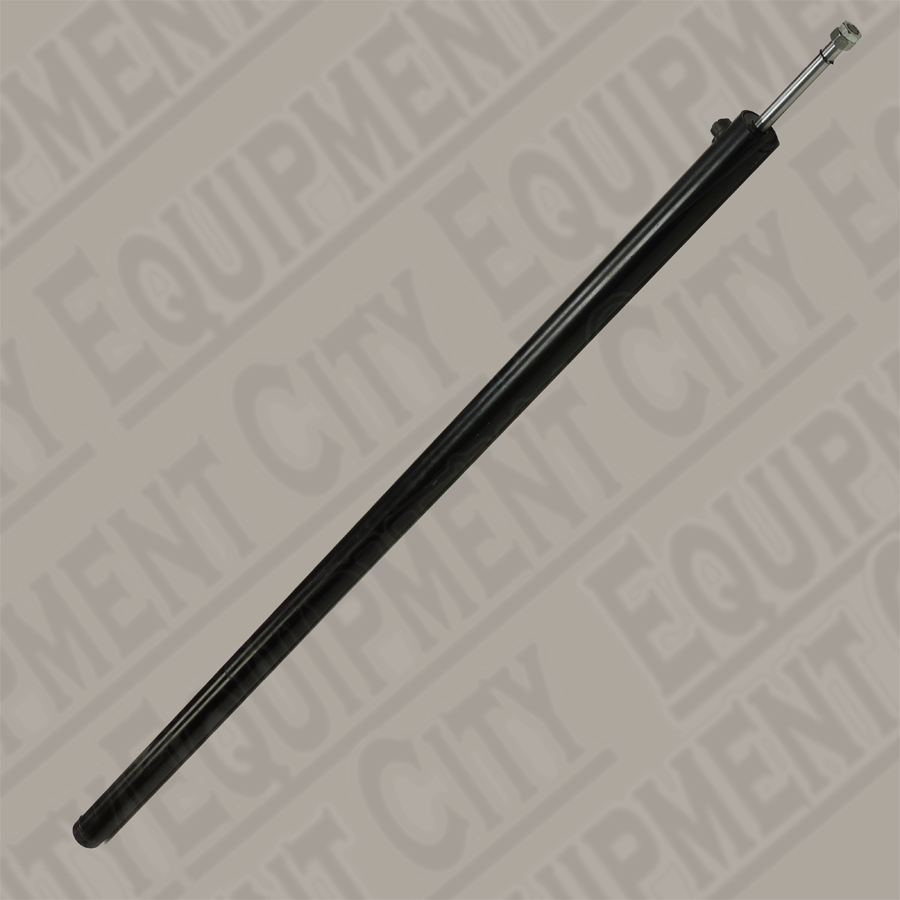

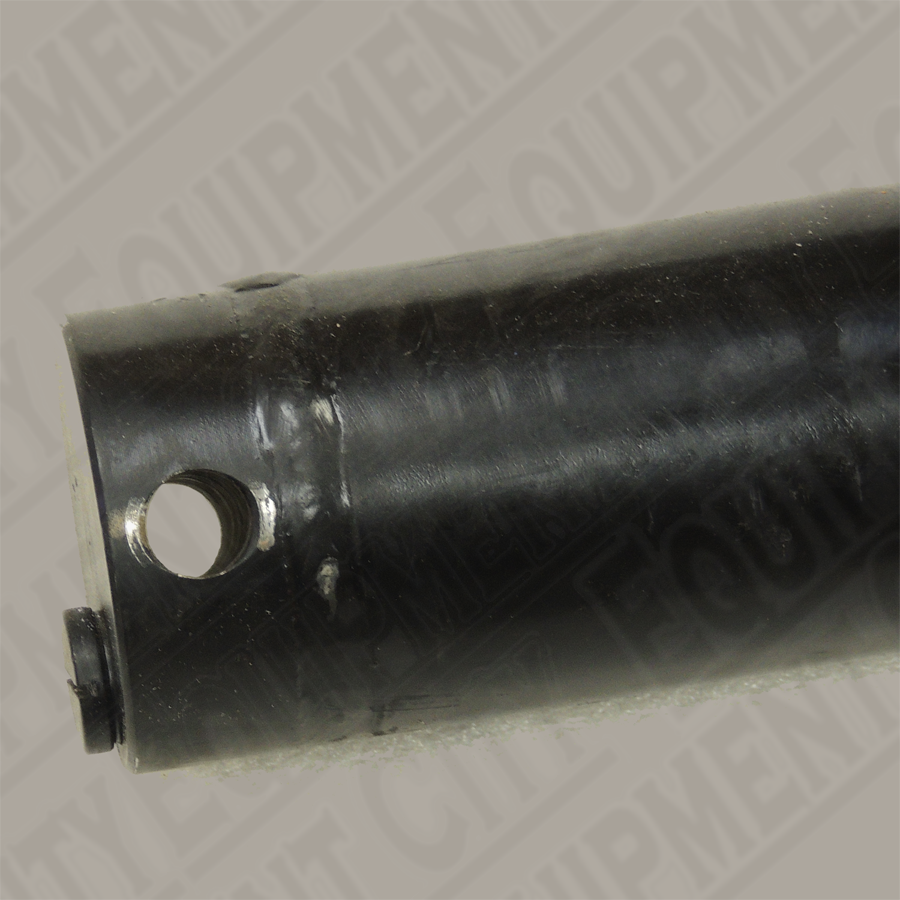

2" x 67.5" Direct Pull Standard Rise Cylinder
Fits Models:
Seal Kit Options:
Cylinder Removal Procedure
1) With lift in the fully lowered position raise lift to first locking position.
2) Lower lift too first locking position
3) Remove 1 1/8” cylinder jam nut and retaining nut from the bottom of the carriage.
4) Cut and remove plastic hose ties from cylinder.
5) Disconnect hydraulic hose from elbow at cylinder
6) Cap off cylinder elbow with 9/16 JIC cap and Hose with 9/16 JIC plug.
7) Remove nut and bolt from overhead side of cylinder * Note when this bolt is removed, nothing will be
holding the cylinder*
8) Remove hydraulic cylinder from column.
Cylinder Reinstallation
1) Inspect cylinder to insure C-clip is installed at rod end of cylinder
2) Place cylinder in column and reinstall overhead cylinder bolt and nut.
3) Manually pull chrome plunger rod down into the carriage placing the threaded end into hole at the base of the carriage.
4) Reinstall 1 1/8 cylinder retaining nut and jam nut on cylinder rod at underside of the carriage.
5) Raise lift off locks using lifts power unit.
6) Lower lift to floor level
7) Check hydraulic oil level at power unit reservoir and add fluid as needed.
8) Cycle lift several times to bleed air from lift cylinders
9) With lift in lowered position, check oil level and add fluid as needed.
This is a Special Order Item; item is not eligible for Returns , Refunds or Exchanges. Please Call to verify Part Number before ordering - We are here to help
Please Note Inventory Level Status - Does not denote item is in stock. Class A items generally ship direct from the manufacturer. All Rotary parts orders have a minimum Drop Ship order of $100.00. Additional lead times and charges will apply if the minimum order is not met. Please feel free to contact us to verify stock and availability before placing an order.
