SVI BH-7008-82 Rhino 2 HP Power Unit P3368

Rhino 2 HP 230V AC  Hydraulic power unit with power up and gravity down functions for above ground vehicle lifts. A push button raises the lift and a manually operated control valve is used to lower the lift. This unit features an installer adjustable pressure relief valve and 3.6 GAL opaque tank.

• Power Unit 2HP, 1 PH, 3520 RPM  2 GPM
• Lowering Valve: Manually operated
• Buffer Valve: Z1-4
• Pressure Relief Valve: Adjustable and factory preset to 2850 PSI
• Check Valve: M20 x1.5
• Motor: 208-230V, 1PH, 50/60 HZ, 2930/3520 RPM
• Gear Pump: 2.1 cc/r 2 gpm
• Suction Filter: 100 mesh
• Tank: 3.6 usable gallons, Opaque plastic

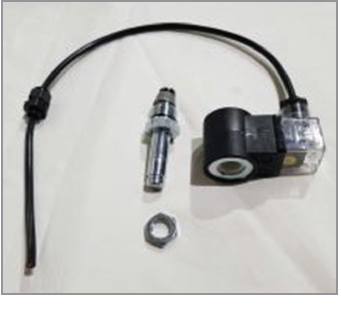

If you are trying to replace a P3368 on a Rotary RLP77 there are 2 versions of this lift. 1 version has the power unit on a rolling dolly and has controls on the power unit. The other version has the power unit in a console/control box. If the controls are on the power unit you can substitute the P3368 with the BH-7006-01-25 Power Unit. If the power unit is in the control box, you can use this Rhino power unit BH-7008-82 with an add on control valve BH-7008-47 AFC-5M-25 pressure gauge F-6-4APC gauge fitting. hino units have adjustable pressure setting

Replacement parts list:

• BH-7008-51      2 HP Motor, 208-230V 1PH, 3520 RPM
• BH-7008-52        Manual Release Valve
• BH-7008-53         Check Valve
• BH-7008-54      Pump Body / Center Manifold AC2850
• BH-7008-55     Pressure Release Valve  AC2850
• BH-7008-56       Plug M10 x 1
• BH-7008-57        Plug 9/16 - 18
• BH-7008-58       O-Ring 8mm x 2.1mm
• BH-7008-59       O-Ring 11.8mm x 1.8mm
• BH-7008-60     Gear Pump Assembly AC2850 2 GPM
• BH-7008-61      Manifold Screw
• BH-7008-62      Motor Shaft Coupling
• BH-7008-63    Pump Mounting Bolt AC2850
• BH-7008-64    Suction Pipe AC2850
• BH-7008-65    Return Tube AC2850
• BH-7008-66    O-Ring 120mm x 5.7mm AC2850
• BH-7008-67B    3.5 Gallon Reservoir  AC2850
• BH-7008-68   Hex Screw M5 x 18 AC2850
• BH-7008-69      Flat Washer M5
• BH-7008-70   Buffer Valve AC2850
• BH-7008-71     3/8" NPT Plug
• BH-7008-72      Ball Plug
• BH-7008-73      Suction Tube Strainer
• BH-7008-74     Lock Washer M8
• BH-7008-75     Switch Cover
• BH-7008-76B    32 AMP Motor Switch For 5 HP Motor


Optional larger reservoir available (6.2 gallons) under part number BH-7008-84

**This is a Special Order Item - Not Eligible for Returns, Refunds or Exchanges - All Sales Final**

Note on Stock Status: Available means item has historically been available from the manufacture to be Drop Shipped. Available as a stock status does not mean item is in stock and ready to ship. Please call ahead to check availability
