Parts Diagram for Corghi A9820TI

Parts Diagram for Corghi A9820TI



You can click on the parts, or scroll down to the part numbers listed below.



Screw Spacer Spring Nut ~ NA Locking Ring Nut Lid Knob Screw Screw Arm Pin Eccentric Knob Arm Ring Duck head Nut shaft Washer Valve Connector Pressure Gauge  Support Connection Connector




ITEM # PART # DESCRIPTION
121 900600153 ~ NA NUT
122 900600382 SCREW
123 900441580 KNOB
124 900440942 CONNECTION
125 900435077 VALVE
126 900434818 PRESSURE GAUGE
127 900449677 CONNECTOR
128 900441609 CONNECTOR
130 900338808 SUPPORT
132 900601312 SCREW
133 900346273 SPACER
134 900258458 MOUNT/DEMOUNT
135 900261215 SHAFT


























Container Support Body ~ NA Hood Ring Washer Pin Knob Trace Pin sheild Sheild Foot Extention Rim Support Screw

ITEM # PART # DESCRIPTION
201 900241004 ~ NA BODY
202 900238911 EXTENSION
203 900239050 TRACE
204 900315522 SUPPORT
205 900339046 PIN
206 900339456 PIN
207 900341176 HOOD
209 900422019 FOOT
ITEM # PART # DESCRIPTION
210 900423405 CONTAINER
211 900425219 KNOB
212 900429006 SHIELD
213 900429976 SHIELD
214 900436199 RIM SUPPORT
215 900600215 WASHER
216 900601122 RING
217 900601885 SCREW






































Plug Screw Washer Plate Rim Support T.I. Locking peak Bushing Pin Bushing Nut Roll Pin Cover Washer Screw Rim Support T.I. Locking Peak Connector Flange Washer Seal Kit Connector Connector



ITEM # PART # DESCRIPTION
301 900323363 WASHER
302 900426514 PLUG
313 900238548 SEALS KIT
323 900601216 SCREW

ITEM # PART # DESCRIPTION
9303 900253801 TURNTABLE T.I.
310 900437964 WASHER
324 900455082 WASHER
325 900253758 PLATE
326 900339146 LOCKING PEAK
327 900253813 RIM SUPPORT T.I.
328 900441100 CONNECTOR
329 900602199 SCREW
330 900253776 FLANGE
331 900601059 PLUG
332 900353803 BUSHING
333 900353804 PIN
334 900354638 COVER
335 900601276 NUT
336 900253812 RIM SUPPORT T.I.
ITEM # PART # DESCRIPTION
9304 900253784 CYLINDER RIGHT
9304 900253783 CYLINDER LEFT
337 900441568 CONNECTOR
338 900443367 CONNECTOR





ITEM # PART # DESCRIPTION
Ø6 900701684 PIPE
Ø8 900701683 PIPE
223 900252625 PEDAL
224 900346266 ~ NA  PIPE
225 900342289 PIPE
245 900704223 PIPE

ITEM # PART # DESCRIPTION
9201 900252568 ASSEMBLY

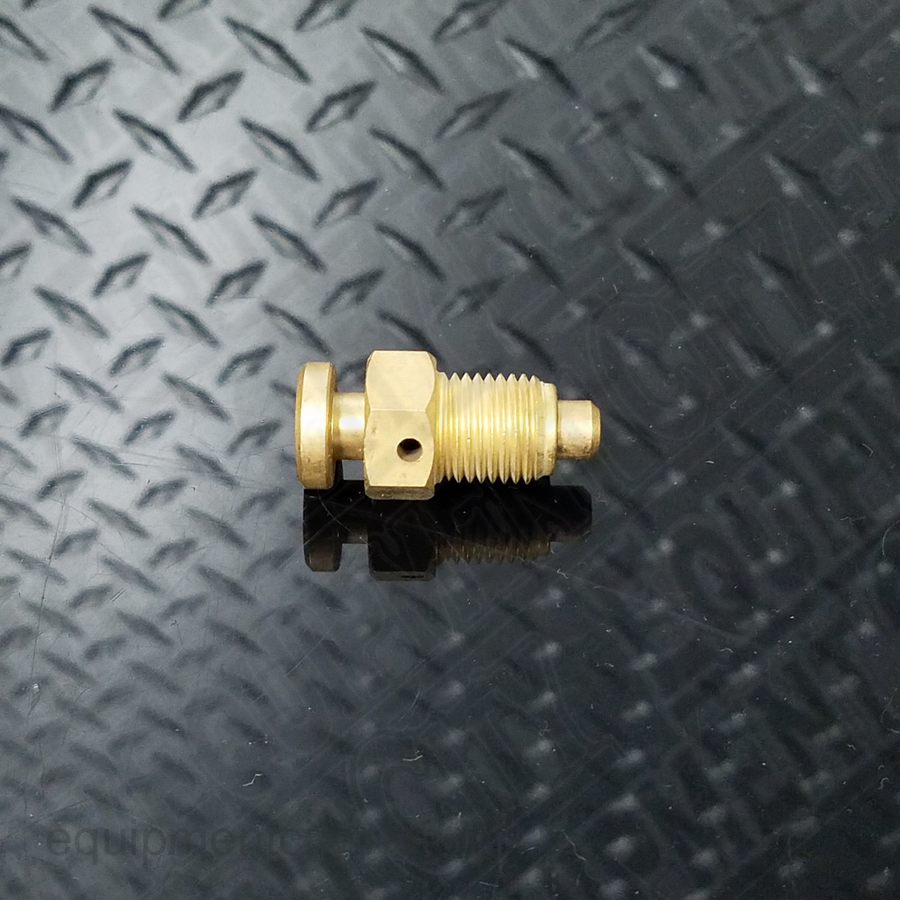

232 900235463 VALVE
233 900452564 VALVE
234 900452553 VALVE
235 900450406 CONNECTOR
236 900418252 CONNECTION
237 900421137 CLUTCH
238 900352614 PIPE
ITEM # PART # DESCRIPTION
9202 900242290 VALVE
226 900431993 CARTRIDGE
227 900438665 CONNECTOR
228 900243020 VALVE
243 900441651 CONNECTOR

ITEM # PART # DESCRIPTION
230 900241841 CONNECTOR

ITEM # PART # DESCRIPTION
9203 900252600 BOX
232 900235463 VALVE
238 900352614 PIPE
239 900235462 PIPE
240 900436364 PRESSURE GAUGE
241 900434180 CONNECTOR
244 900429536 CLUTCH







ITEM # PART # DESCRIPTION
211 900425219 HANDLE

ITEM # PART # DESCRIPTION
9502 900245743 ARM
504 900224000 BEAD BREAKER
505 900245701 ARM
506 950323901 WASHER
507 900339045 PIN
508 900324008 PIN
509 900409650 WASHER
510 900422255 NUT
516 900600372 SCREW
517 900345616 RETAINER
518 900345617 LOCKING PEAK
519 900345618 BLOCK
520 900600308 SCREW
521 900600212 WASHER
ITEM # PART # DESCRIPTION
9501 900239042 CYLINDER
231 900441598 CONNECTOR
502 900325561 WASHER
503 900434031 RING
522 900451926 CONNECTOR
523 900351905

FLANGE


ITEM # PART # DESCRIPTION
511 900239061 PAD
512 900439105 SPRING
513 900323903 FULCRUM
515 900238212 SEALS KIT

ITEM # PART # DESCRIPTION
9701 900241201 CONTROL PEDAL
115 900600025 RING
521 900600212 WASHER
700 900352009 PEDAL
701 900600411 SCREW
702 900600211 WASHER
703 900601979 NUT
707 900600312 SCREW
708 900325019 LEAF SPRING
709 900425020 CAM
710 900601272 SCREW
711 900325018 U-BOLT
712 900601980 NUT
714 900425014 TRACE
716 900419888 WASHER

ITEM # PART # DESCRIPTION
717 900309358 WASHER
719 900325583 PIN
720 900410628 SPRING
721 900324273 SUPPORT
722 900325031 PEDAL
723 900325032 PEDAL
724 900428682 SPRING
725 900325050 SPACER
727 900600366 SCREW
729 900429009 TRACE
730 900600362 SCREW
731 900334758 SUPPORT
732 900404283 LEVER
733 900452011 BUSHING
734 900253298 COCK


ITEM # PART # DESCRIPTION
9702 900270526 CONTROL PEDAL
701 900600411 SCREW
702 900600211 WASHER
703 900601979 NUT
724 900428682 SPRING
727 900600366 SCREW
768 900415860 CONNECTOR
772 900229957 PEDAL
774 900329058 ~ NA PLATE
775 900331381 TRACE
777 900600291 SCREW
778 900601018 NUT
780 900258456 Pedal Valve
ITEM # PART # DESCRIPTION
Ø8 900701683 PIPE
Ø10 900701875 PIPE
750 900319135 MOTOR
751 900319076 PULLEY
752 900600801 SCREW
753 900425238 BELT
754 900319073 PULLEY
755 900600363 SCREW
757 900422288 NUT
760 900419141 VALVE
762 950419140 CONNECTOR
764 900315273 ~ NA PIPE
765 900422682 SILENCER
779 900418350 CONNECTOR

ITEM # PART # DESCRIPTION
9403

900255775~NA

GEAR BOX
401 900601280 PIN
402 900601703 BEARING
403 900601220 BEARING
404 900601950 TANG
410 900354082 PULLEY
440 900601221 BEARING



ITEM # PART # DESCRIPTION
411 900246010 STAY ROD
412 900340367 PIN
413 900340365 BUSHING
414 900454084 BELT
416 900346012 PIN
417 900346017 SUPPORT
418 900446016 LID
420 900446013 LID
424 900349299 SUPPORT
425 900449300 LID
442 900462139 MOTOR
443 900462138 P.C.BOARD



ITEM # PART # DESCRIPTION
9402 900253549 CABLE
435 900432065 SHIELD
436 900430991 LID
437 900453548 REVERSER



ITEM # PART # DESCRIPTION
438 900238204 SEALS KIT



ITEM # PART # DESCRIPTION
9404 900235574 3ph
470 900421523 ***3 PHASE*** REVERSER
471 900235518 CABLE
472 900225390 CABLE
473 900225051 U-BOLT



ITEM # PART # DESCRIPTION
435 900432065 SHIELD
436 900430991 LID
474 950412959 MOTOR 3ph 400V
475 900432009 BELT
476 900334768 CRADLE
477 900325274 PULLEY

ITEM # PART # DESCRIPTION
9801 900232897 GEAR BOX
9801 900255774~NA GEAR BOX
401 900601280 PIN
402 900601703 BEARING
403 900601220 BEARING
440 900601221 BEARING
754 900319073 PULLEY
754 900414344 PULLEY
802 900600667 TANG



ITEM # PART # DESCRIPTION
438 900238204 SEALS KIT



ITEM # PART # DESCRIPTION
126 900434818 PRESSURE GAUGE
235 900450406 CONNECTOR
1001 900335695 BRACKET
1002 900441899 COUPLING
1003 900433873 CONNECTOR



ITEM # PART # DESCRIPTION
9906 900456522 FILTER
1007 900457512 BOWL
1008 900457511~NA BOWL


ITEM # PART # DESCRIPTION
1102 900444238 LEVER
1103 900228563 M/D HEAD
1106 900435202 WEDGE
1108 801435685 PLIERS
1109 801246241 SHIELD
1115 801258383 SHIELD
1117 801254343 SHIELD
1118 801458663~NA SHIELD
1119 801252083 M/D HEAD
1120 801258650 ADAPTOR
1121 801260402 BEAD BREAKER
1122 801252087~NA LOCKING
1123 801258898 INSERT
1124 801254341 INSERT



ITEM # PART # DESCRIPTION
1111 801242834 LEVER
211 900425219 KNOB
1114 900440600 HEAD



ITEM # PART # DESCRIPTION
1112 801250309 Plastic m/d head
1113 900450310 Plastic m/d head
